General Description
CS4340A General Description
The CS4340A is a complete stereo digital-to-analog system including digital interpolation, fourth-order deltasigma
digital-to-analog conversion, digital de-emphasis and switched capacitor analog filtering. The advantages of this architecture include: ideal differential linearity, no distortion mechanisms due to resistor matching errors,no linearity drift over time and temperature, and a high tolerance to clock jitter.
The CS4340A accepts data at all standard audio sample rates up to 192 kHz, consumes very little power, operates
over a wide power supply range and is pin compatible with the CS4340, as described in section 3.1.These features are ideal for DVD audio players.
CS4340A Maximum Ratings
(AGND = 0 V; all voltages with respect to AGND. Operation beyond these limits may result in permanent damage to the device. Normal operation is not guaranteed at these extremes.)
Notes: 1. Normal operation is defined as RST = HI with a 997 Hz, 0dBFS input sampled at the highest Fs for each
speed mode, and open outputs, unless otherwise specified.
2. Power Down Mode is defined as RST = LO with all clocks and data lines held static.
3. Valid with the recommended capacitor values on FILT+ and VQ as shown in Figure 1. increasing thecapacitance will also increase the PSRR.
4. Any pin except supplies.
| Parameters |
Symbol |
Min |
Max |
Units |
| DC Power Supplies: |
VA |
-0.3 |
6.0 |
V |
| Input Current (Note 4) |
Iin |
- |
±10 |
mA |
| Digital Input Voltage |
VIND |
-0.3 |
VL+0.4 |
V |
| Ambient Operating Temperature (power applied) |
TA |
-55 |
125 |
°C |
| Storage Temperature |
Tstg |
-65 |
150 |
°C |
speed mode, and open outputs, unless otherwise specified.
2. Power Down Mode is defined as RST = LO with all clocks and data lines held static.
3. Valid with the recommended capacitor values on FILT+ and VQ as shown in Figure 1. increasing thecapacitance will also increase the PSRR.
4. Any pin except supplies.
CS4340A Features
101 dB Dynamic Range
-91 dB THD+N
+3.3 V or +5 V Power Supply
50 mW with 3.3 V supply
Low Clock Jitter Sensitivity
Filtered Line Level Outputs
On-Chip Digital De-emphasis for 44.1kHz
Popguard® Technology for Control of Clicks and Pops
Up to 200 kHz Sample Rates
Automatic Mode Detection for Sample Rates between 4 and 200 kHz
Pin Compatible with the CS4340
CS4340A Connection Diagram
CS4340A
PDF/DataSheet Download
- Datasheet: CS4340A
- File Size: 643888 KB
- Manufacturer: CIRRUS [Cirrus Logic]
- Click here to Download
- ·CS403
- CHERRY [Cherry Semiconductor Corporation]
- 5V, 750mA Linear Regulator with RESET
- 162386 KB
- ·CS403GT5
- CHERRY [Cherry Semiconductor Corporation]
- 5V, 750mA Linear Regulator with RESET
- 162386 KB
- ·CS403GTHA5
- CHERRY [Cherry Semiconductor Corporation]
- 5V, 750mA Linear Regulator with RESET
- 162386 KB
- ·CS403GTVA5
- CHERRY [Cherry Semiconductor Corporation]
- 5V, 750mA Linear Regulator with RESET
- 162386 KB
- ·CS40D
- SEMIKRON [Semikron International]
- Bridge rectifiers
- 199288 KB
- ·CS40S
- SEMIKRON [Semikron International]
- Bridge rectifiers
- 146632 KB
- ·CS4101
- CHERRY [Cherry Semiconductor Corporation]
- Precision Air-Core Tach/Speedo Driver with Separate Function Generator Input
- 172100 KB
- ·CS4101EN20
- CHERRY [Cherry Semiconductor Corporation]
- Precision Air-Core Tach/Speedo Driver with Separate Function Generator Input
- 172100 KB
CS4340A Relative Products
CS4340
The CS4340 is a complete stereo digital-to-analog (D/A) system including digital interpolation, fourth-order Delta-Sigma D/A conversion, digital de-emphasis, and switched capacitor analog filtering. The advantages of this architecture include ideal different...
CS4339-KSZR
IC DAC STER 24BIT 96KHZ 8-SOIC
CS4339
The CS4334 family members are complete, stereo digital- to-analog output systems including interpolation, 1-bit D/A conversion and output analog filtering in an 8-pin package. The CS4334/5/6/7/8/9 support all major audio data interface formats, and the indiv...
CS4338-KSZR
IC DAC STER 24BIT 96KHZ 8-SOIC
CS4338-KSZ

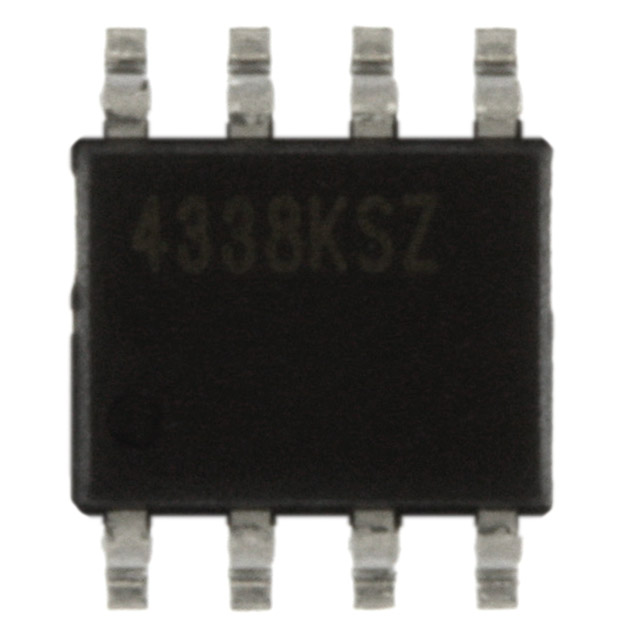

IC DAC 24BIT 96KHZ 96DB 8-SOIC
