Part Number: CS4391A









Description: The CS4391A is a complete stereo digital-to-analog system including digital interpolation, fourth-order deltasigma digi...


Urgent Purchase

CS4391A General Description


The CS4391A is a complete stereo digital-to-analog system including digital interpolation, fourth-order deltasigma digital-to-analog conversion, digital de-emphasis,volume control, channel mixing and analog filtering.The advantages of this architecture include: ideal differential linearity, no distortion mechanisms due to resistor matching errors, no linearity drift over time and temperature and a high tolerance to clock jitter.The CS4391A accepts PCM data at sample rates from 4 kHz to 192 kHz, DSD audio data, consumes very little power and operates over a wide power supply range.These features are ideal for DVD, A/V receivers, CD and set-top box systems.

CS4391A Maximum Ratings

(AGND = 0 V; all voltages with respect to ground.)
Parameters
Symbol
Min
Max
Units
DC Power Supplies:
VA
VL
-0.3
-0.3
6.0
VA
V
V
Input Current, Any Pin Except Supplies
Iin
-
±10
mA
Digital Input Voltage
VIND
-0.3
VL+0.4
V
Ambient Operating Temperature (power applied)
TA
-55
125
°C
Storage Temperature
Tstg
-65
150
°C
WARNING: Operation at or beyond these limits may result in permanent damage to the device. Normal operation is
not guaranteed at these extremes.

CS4391A Features

􀀀Complete Stereo DAC System: Interpolation,D/A, Output Analog Filtering
􀀀108 dB Dynamic Range
􀀀94 dB THD+N
􀀀Direct Stream Digital Mode
􀀀Low Clock Jitter Sensitivity
􀀀+5 V Power Supply
􀀀ATAPI Mixing
􀀀On-Chip Digital De-emphasis for 32, 44.1,and 48 kHz
􀀀Volume Control with Soft Ramp
   119 dB Attenuation
   1 dB Step Size
   Zero Crossing Click-Free Transitions
􀀀Direct Interface with 5 V to 1.8 V Logic

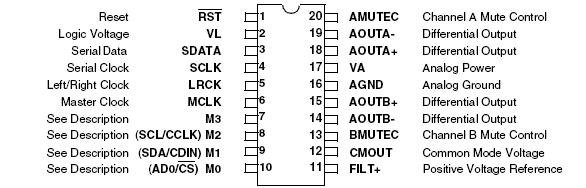

CS4391A Connection Diagram

CS4391A Connection Diagram

CS4391A datasheet

CS4391A
PDF/DataSheet Download

Find CS4391A Suppliers
