CS4811

Features: `Audio Processor for embedded reverb/effects applications Proprietary 24-bit Audio Processing Engine On-chip RAM (No external RAM required) On-chip 24-bit DS ADC with 100 dB Dyn. Range On-chip 24-bit DS DAC with 100 dB Dyn. Range Automatically boots firmware from external serial EEPR...

product image

CS4811 Picture
See larger image
SeekIC No. : 004316456 Detail

CS4811: Features: `Audio Processor for embedded reverb/effects applications Proprietary 24-bit Audio Processing Engine On-chip RAM (No external RAM required) On-chip 24-bit DS ADC with 100 dB Dyn. Range ...

CS4811 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CS4811
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Audio Processor for embedded reverb/effects applications
    Proprietary 24-bit Audio Processing Engine
   On-chip RAM (No external RAM required)
   On-chip 24-bit DS ADC with 100 dB Dyn. Range
   On-chip 24-bit DS DAC with 100 dB Dyn. Range
   Automatically boots firmware from external serial EEPROM
`Firmware available for Guitar Effects or Mixer Effects applications
`Single +5 V Supply
`100-pin Metric Quad Flat Pack (MQFP)


Pinout

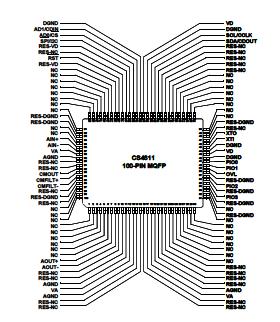

Connection Diagram


Specifications

Parameter
Symbol
Min
Typ
Max
Unit
Power Supplies
Digital
Analog
VD
VA
VD
VA
-
6.0
6.0
V
V
Input Current (Note 14)
-
-
±10.0
mA
Analog Input Voltage (Note 15)
-0.7
-
(VA)+0.7
V
Digital Input Voltage (Note 15)
-0.7
-
(VD)+0.7
V
Ambient Temperature (Power Applied)
-55
-
+125
Storage Temperature
-65
-
+150

Notes: 14. Any pin except supplies. Transient currents of up to ±100 mA on the analog input pins will not cause SCR latch-up.
15. The maximum over or under voltage is limited by the input current.
Warning: Operation at or beyond these limits may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.



Description

The CS4811 is a complete audio effects processing system on a chip. This device integrates a proprietary 24- bit audio processing engine, large on-chip RAM memories, and a high performance 24-bit audio codec. A serial control port allows the device to boot firmware from a compact and low cost SPI or I2C serial EEPROM. Other features such as single +5 V operation simplify system design.

Firmware for the CS4811 is provided by Cirrus Logic. There are two different firmware codes available; one for guitar effects and one for audio mixers. The guitar effects firmware provides a host of electric guitar effects including spring reverb, delay, chorus, flange and tremolo.

The mixer effects firmware provides a suite of effects such as digital reverb, delay and chorus which are suitable for use in audio mixers, karaoke and acoustic instrument amplifiers. The CDB4811GTR and CDB4811MXR evaluation boards allow easy evaluation of the CS4811 device and the associated firmware.
