Purchase CS61305A, In-stock CS61305A From SeekIC.
Part Number: CS61305A
Description: The CS61305A combines the complete analog transmit and receive line interface for T1 or E1 applications in a low power,...
- Table of contents:
CS61305A
-
Suppliers
DataSheet
General Description
CS61305A General Description
The CS61305A combines the complete analog transmit and receive line interface for T1 or E1 applications in a low power, 28-pin device operating from a +5V supply. The CS61305A is a pin-compatible replacement for the LXT305A in most applications.
The CS61305A provides a transmitter jitter attenuator making it ideal for use in asynchronous multiplexor systems with gapped transmit clocks. The transmitter features internal pulse shaping and a low impedance output stage allowing the use of external resistors for transmitter impedance matching. The receiver uses a digital Delay-Locked-Loop clock and data recovery circuit which is continuously calibrated from a crystal reference to provide excellent stability and jitter tolerance.
CS61305A Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
| DC Supply (referenced to RGND=TGND=0 V) |
RV+ TV+ |
- - |
6.0 (RV+) + 0.3 |
V V |
| Input Voltage, Any Pin (Note 1) |
Vin |
RGND - 0.3 |
(RV+) + 0.3 |
V |
| Input Current, Any Pin (Note 2) |
Iin |
-10 |
10 |
mA |
| Ambient Operating Temperature |
TA |
-40 |
85 |
°C |
| Storage Temperature |
Tstg |
-65 |
150 |
°C |
CS61305A Features
· Provides Analog Transmission Line Interface for T1 and E1 Applications
· Provides Line Driver, Jitter Attenuator and Clock Recovery Functions
· Transmit Side Jitter Attenuation Starting at 3 Hz, with > 300 UI of Jitter Tolerance
· B8ZS/HDB3/AMI Encoders/Decoders
· Compatible with SONET, M13 , CCITT G.742, and Other Asynchronous Muxes
· 50 mA Transmitter Short-Circuit Current Limiting
· Provides Line Driver, Jitter Attenuator and Clock Recovery Functions
· Transmit Side Jitter Attenuation Starting at 3 Hz, with > 300 UI of Jitter Tolerance
· B8ZS/HDB3/AMI Encoders/Decoders
· Compatible with SONET, M13 , CCITT G.742, and Other Asynchronous Muxes
· 50 mA Transmitter Short-Circuit Current Limiting
CS61305A Typical Application
· Interfacing network transmission equipment such as SONET multiplexor and M13 to a DSX-1 cross connect.
· Interfacing customer premises equipment to a CSU.
· Interfacing customer premises equipment to a CSU.

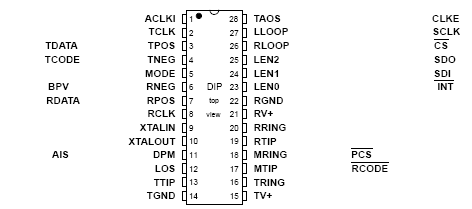

CS61305A Connection Diagram
CS61305A
PDF/DataSheet Download
- Datasheet: CS61305A
- File Size: 646575 KB
- Manufacturer: CIRRUS [Cirrus Logic]
- Click here to Download
