Part Number: CS61318
Description: The CS61318 is an E1 primary rate line interface unit. This device combines the complete analog transmit and receive ci...
- Table of contents:
CS61318
-
Suppliers
DataSheet
General Description
CS61318 General Description
The CS61318 is an E1 primary rate line interface unit. This device combines the complete analog transmit and receive circuitry for a single, full-duplex interface E1 rates. The device provides jitter attenuation compliant to CTR12/TBR13 without requiring an external crystal. Also, the CS61318 is pin and function compatible with the Level One LXT318.
In addition to a basic hardware control mode, a host mode is available that gives the user an enhanced functionality via a serial microprocessor interface. The extended features include custom pulse shape generation, AIS and LOS monitoring functions, signal strength monitoring, and generation and detection of loop up and loop down codes.
CS61318 Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
| DC Supply (referenced to RGND=TGND=0 V) |
RV+ TV+ |
- - |
6.0 (RV+) + 0.3 |
V V |
| Input Voltage, Any Pin |
Vin |
RGND - 0.3 |
(RV+) + 0.3 |
V |
| Input Current, Any Pin (Note 1) |
Iin |
-10 |
10 |
mA |
| Ambient Operating Temperature |
TA |
-40 |
85 |
°C |
| Storage Temperature |
Tstg |
-65 |
150 |
°C |
CS61318 Features
`E1 Line Interface Unit
`No Crystal Needed for Jitter Attenuation
`Meets CTR-12/TBR-12 Jitter Tolerance and Attenuation Requirements
`Meets ITU-T G.775 Requirements for LOS and AIS
`Meets the BS6450 Transmitter Short-Circuit Requirements for E1 Applications
`AWG for User Programmable Pulse Shapes
`Line Quality Monitoring Function
`TX Driver High Impedance / Low Power Control
`AIS and LOS Monitoring
`Generation and Detection of Loop Up / Loop Down Signaling
`Selectable HDB3 Encoding/Decoding
`Selectable Unipolar or Bipolar I/O
`Compliant with:
- ITU-T Recommendations: G.703, G.732, G.775, I.431
- ETSI ETS 300 011, 300 233, CTR 12, TBR 13
- TR-NET-00499
`No Crystal Needed for Jitter Attenuation
`Meets CTR-12/TBR-12 Jitter Tolerance and Attenuation Requirements
`Meets ITU-T G.775 Requirements for LOS and AIS
`Meets the BS6450 Transmitter Short-Circuit Requirements for E1 Applications
`AWG for User Programmable Pulse Shapes
`Line Quality Monitoring Function
`TX Driver High Impedance / Low Power Control
`AIS and LOS Monitoring
`Generation and Detection of Loop Up / Loop Down Signaling
`Selectable HDB3 Encoding/Decoding
`Selectable Unipolar or Bipolar I/O
`Compliant with:
- ITU-T Recommendations: G.703, G.732, G.775, I.431
- ETSI ETS 300 011, 300 233, CTR 12, TBR 13
- TR-NET-00499

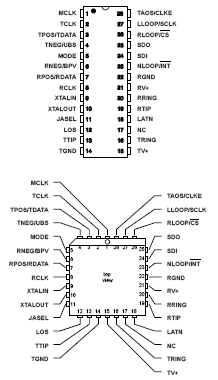

CS61318 Connection Diagram
CS61318
PDF/DataSheet Download
- Datasheet: CS61318
- File Size: 452781 KB
- Manufacturer: CIRRUS [Cirrus Logic]
- Click here to Download
