CS8402A

Features:

 Monolithic Digital Audio Interface
  Transmitter
Supports: AES/EBU, IEC 958,
       S/PDIF, & EIAJ CP-340
       Professional and Consumer Formats
Host Mode and Stand Alone Modes
Generates CRC Codes and Parity Bits
On-Chip RS422 Line Driver
Configurable Buffer Memory (CS8401A)
Transparent Mode Allows Direct
   Connection of CS8402A and CS8412
   or CS8401A and CS8411A

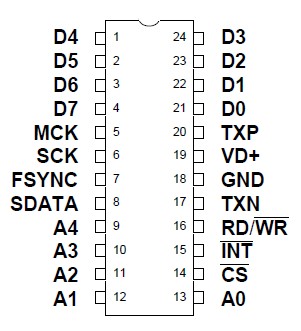

Pinout




Specifications

Parameter	Symbol	Min	Value	Unit
DC Power Supply	VD+		6.0	V
Input Current, Any Pin Except Supply                     Note 1	Iin	-	±10	mA
Digital Input Voltage	VIND	-0.3	VD+	V
Ambient Operating Temperature (power applied)	TA	-55	125	°C
Storage Temperature	TStg	-65	150	°C

Description

The CS8401/2A are monolithic CMOS devices which encode and transmit audio data according to the AES/EBU, IEC 958, S/PDIF, & EIAJ CP-340 interface standards. The CS8401/2A accept audio and digital data, which is then multiplexed, encoded and driven onto a cable. The audio serial port is double buffered and capable of supporting a wide variety of formats.

The CS8401A has a configurable internal buffer memory, loaded via a parallel port, which may be used to buffer channel status, auxiliary data, and/or user data.

The CS8402A multiplexes the channel, user, and validity data directly from serial input pins with dedicated input pins for the most important channel status bits.
