Part Number: CS89712
Description: The low-power high-performance CS89712 is designed for ultra-low-power communication applications such...
- Table of contents:
CS89712
-
Suppliers
DataSheet
General Description
CS89712 General Description
The low-power high-performance CS89712 is designed for ultra-low-power communication applications such as VoIP telephones, industrial control, data acquisition, special purpose servers and RF to Ethernet bridges. The core-logic functionality of the device is built around an ARM720T processor with 8 Kbytes of four-way set-associative unified cache and a write buffer. Incorporated into the ARM720T is an enhanced memory management unit (MMU) which allows for support of sophisticated operating systems like embedded Linux.
The CS89712 Ethernet port includes on-chip RAM and 10BASE-T transmit and receive filters.
CS89712 Maximum Ratings
| DC Core, PLL, and RTC Supply Voltage | 2.9 V |
| DC I/O Supply Voltage (Pad Ring) | 3.6 V |
| DC Pad Input Current | ±10 mA/pin; ±100 mA cumulative |
| Storage Temperature, No Power | 40°C to +125°C |
CS89712 Features
`ARM720T (ARM7 TDMI) processor
8 Kbytes of four-way set-associative cache
MMU with 64-entry TLB
Write Buffer
Thumb code support enabled
`Dynamically clocked at 18, 36, 49 or 74 MHz
`10 Mbit Ethernet Controller with integrated PHY
`Comprehensive Suite of Software Drivers
`On-Chip Transmit and Receive RAM Buffers
`10BASE-T Port with Analog Filters provides automatic polarity detection and correction
`Programmable Transmit Features:
Automatic Re-transmission on Collision
Automatic Padding and CRC Generation
`Programmable Receive Features:
Early Interrupts for Frame Pre-Processing
Automatic Rejection of Erroneous Packets
8 Kbytes of four-way set-associative cache
MMU with 64-entry TLB
Write Buffer
Thumb code support enabled
`Dynamically clocked at 18, 36, 49 or 74 MHz
`10 Mbit Ethernet Controller with integrated PHY
`Comprehensive Suite of Software Drivers
`On-Chip Transmit and Receive RAM Buffers
`10BASE-T Port with Analog Filters provides automatic polarity detection and correction
`Programmable Transmit Features:
Automatic Re-transmission on Collision
Automatic Padding and CRC Generation
`Programmable Receive Features:
Early Interrupts for Frame Pre-Processing
Automatic Rejection of Erroneous Packets
CS89712
PDF/DataSheet Download
- Datasheet: CS89712
- File Size: 2463170 KB
- Manufacturer: CIRRUS [Cirrus Logic]
- Click here to Download
- ·CS800-12IO1
- IXYS [IXYS Corporation]
- Phase Control Thyristor
- 26382 KB
- ·CS800-14IO1
- IXYS [IXYS Corporation]
- Phase Control Thyristor
- 33743 KB
- ·CS800-16IO1
- IXYS [IXYS Corporation]
- Phase Control Thyristor
- 26382 KB
- ·CS8-08IO2
- IXYS [IXYS Corporation]
- Phase Control Thyristors
- 52425 KB
- ·CS80C286-12
- INTERSIL
- High Performance Microprocessor with Memory Management and Protection
- 781962 KB
- ·CS80C286-16
- INTERSIL
- High Performance Microprocessor with Memory Management and Protection
- 258048 KB
- ·CS80C286-20
- INTERSIL
- High Performance Microprocessor with Memory Management and Protection
- 385024 KB
- ·CS80C286-25
- INTERSIL
- High Performance Microprocessor with Memory Management and Protection
- 385024 KB
CS89712 Relative Products
CS8954
The CS8954 micro-controller is an 8051 CPU core embedded device especially tailored for consumer and/or general purpose applications. It includes an 8051 CPU core, 768-byte SRAM, 4 channels of 6-bit ADC, 6 channels of PWM DAC, and a 64K-byte internal program...
CS8952T
The CS8952T uses CMOS technology to deliver a high-performance, low-cost 100BASE-X/10BASE-T Physical Layer (PHY) line interface. It makes use of an adaptive equalizer optimized for noise and near end crosstalk (NEXT) immunity to extend receiver operation to ...
CS8952-IQZ

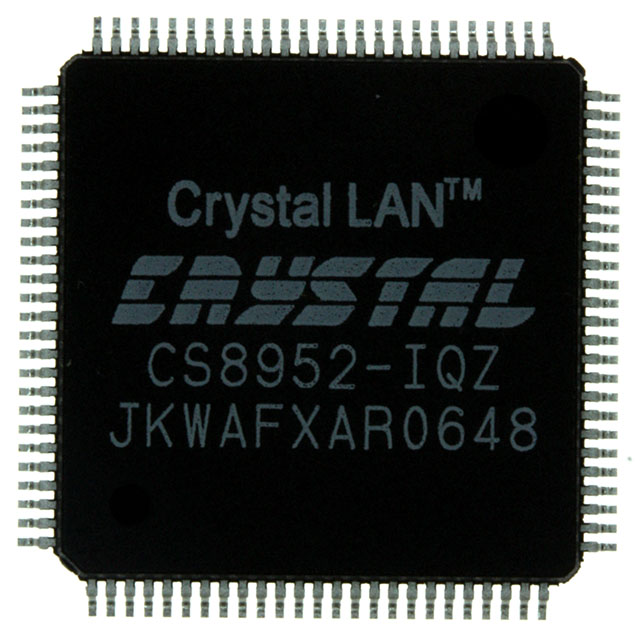

IC TXRX 100/10 PHY 100TQFP
CS8952-IQ
IC ETHNT 10/100 TXRX 5V 100-TQFP
CS8952-CQZ

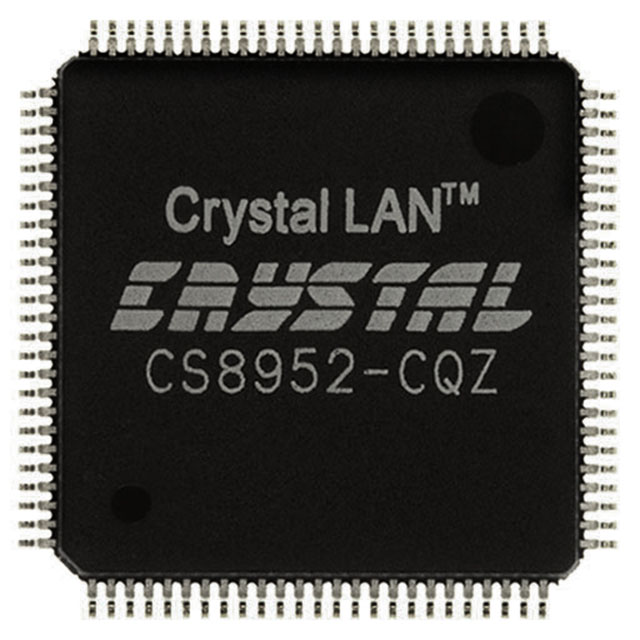

IC TXRX 100/10 PHY 100TQFP
CS8952-CQ

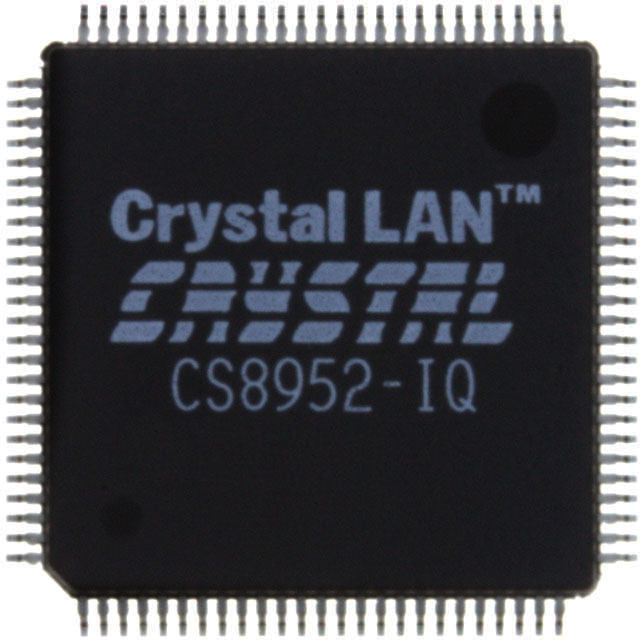

IC ETHNT 10/100 TXRX 5V 100-TQFP
