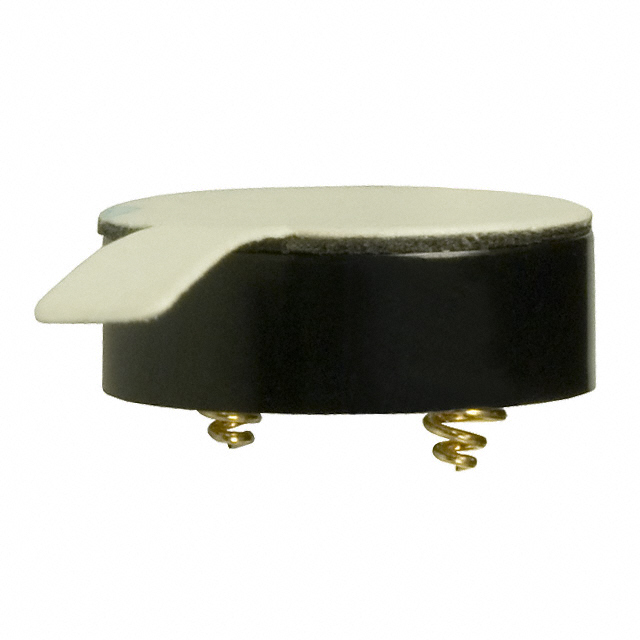

CSQ-706BP

Driver Circuitry: Transducer, Externally Driven
Input Type: zero-peak Signal
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Tray
Manufacturer: CUI Inc
Technology: Magnetic
Voltage - Rated: 1.5Vo-p
Voltage Range: 1 ~ 2V
Frequency: 2.048kHz
Current - Supply: 20mA
Series: CSQ
Sound Pressure Level: 70dB @ 1.5V, 10cm
Size / Dimension: Circular - 12.00mm Dia x 6.00mm H


Specifications

recommended circuits: click here

rated voltage: 1.5Vo-p

operating voltage: 1.0-2.0Vo-p

mean current: 20mA Max

coil resistance: 50Ω ±7.5

sound pressure level: 70dB Min

rated frequency: 2048 Hz

operating temperature: -20 to +60°C

storage temperature: -30 to +70°C

diameter: 12.0 mm

depth: 5.5 mm

weight: 1.2 grams

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	CSQ-706BP
Vendor	CUI Inc
Category	Audio Products
Type	Magnetic Transducer, External Drive
Sound Pressure Level	70dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	2.048kHz
Packaging	Tray
Operating Mode	Continuous
Voltage Range	1~2Vo-p
Voltage - Rated	1.5Vo-p
Current Rating	20mA
Size / Dimension	Circular - 12mm Dia x 5.5mm H
Termination	Solder Pins/Posts
Capacitance	*
Adjustment Type	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CSQ 706BP CSQ706BP 102 1463 ND 1021463ND 102-1463
