CST-934AS

BUZZER MAGNT 9MM 2-4.5V SPG CONT

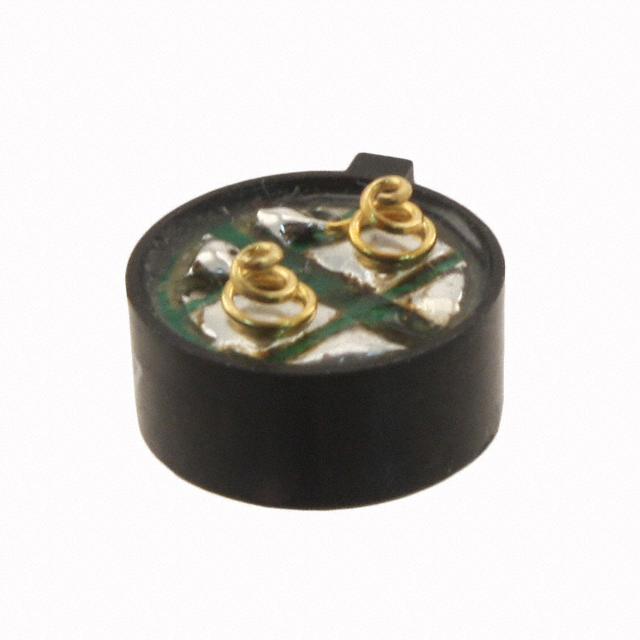

product image

CST-934AS Picture
See larger image
SeekIC No. : 002845445 Detail

CST-934AS: BUZZER MAGNT 9MM 2-4.5V SPG CONT

CST-934AS Data Sheet

floor Price/Ceiling Price

US $ .74~1.84 / Piece | Get Latest Price
Part Number:
CST-934AS
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.84
  • $1.53
  • $1.13
  • $.91
  • $.82
  • $.74
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CST Manufacturer: CUI Inc
Driver Circuitry: Transducer, Externally Driven Technology: Magnetic
Input Type: zero-peak Signal Voltage - Rated: 3Vo-p
Voltage Range: 2 ~ 4.5V Frequency: 2.73kHz
Operating Mode: Continuous Sound Pressure Level: 90dB @ 3V, 5cm
Dimensions : 6.5 mm x 9 mm x 1.8 mm Current - Supply: 80mA
Washable: Yes Mounting Type: Custom
Termination: Spring Terminals Size / Dimension: Circular - 9.00mm Dia x 4.50mm H

Description

Driver Circuitry: Transducer, Externally Driven
Input Type: zero-peak Signal
Voltage - Rated: 3Vo-p
Operating Mode: Continuous
Packaging: Bulk
Manufacturer: CUI Inc
Technology: Magnetic
Washable: Yes
Frequency: 2.73kHz
Current - Supply: 80mA
Mounting Type: Custom
Series: CST
Voltage Range: 2 ~ 4.5V
Sound Pressure Level: 90dB @ 3V, 5cm
Termination: Spring Terminals
Size / Dimension: Circular - 9.00mm Dia x 4.50mm H


Specifications

  • recommended circuits: click here
  • rated voltage: 3.0Vo-p
  • operating voltage: 2.0-4.5 Vo-p
  • mean current: 80mA
  • coil resistance: 20Ω ±3
  • coil impedance: 28Ω
  • sound pressure level: 90dB
  • rated frequency: 2.73kHz
  • operating temperature: -20 to +60°C
  • storage temperature: -30 to +70°C
  • diameter: 9.0 mm
  • depth: 4.0 mm
  • weight: 1.0 grams



    • Parameters:

    Technical/Catalog InformationCST-934AS
    VendorCUI Inc
    CategoryAudio Products
    TypeMagnetic Transducer, External Drive
    Sound Pressure Level90dB
    Mounting TypeRequires Holder
    Capacitance @ Frequency-
    Frequency2.73kHz
    PackagingBulk
    Operating ModeContinuous
    Voltage Range2~4.5Vo-p
    Voltage - Rated 3Vo-p
    Current Rating80mA
    Size / DimensionCircular - 9mm Dia x 4mm H
    TerminationSpring Terminals
    Capacitance*
    Adjustment Type*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CST 934AS
    CST934AS
    102 1202 ND
    1021202ND
    102-1202
