CWB5341

Features: · Ultra High OFF Isolation . . . . . . . . . . . . > 80dB @ 10MHz · Low Channel-to-Channel Cross Talk . . . > 80dB @ 10MHz · TTL Compatible Inputs · Low ON Resistance. . . . . . . . . . . . . . . . . . . . . < 100ohms · Wide Bandwidth. . . . . . . . . . . . . . . . . . . -1.0dB ...

product image

CWB5341 Picture
See larger image
SeekIC No. : 004317621 Detail

CWB5341: Features: · Ultra High OFF Isolation . . . . . . . . . . . . > 80dB @ 10MHz · Low Channel-to-Channel Cross Talk . . . > 80dB @ 10MHz · TTL Compatible Inputs · Low ON Resistance. . . . . . . . ...

CWB5341 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CWB5341
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Ultra High OFF Isolation . . . . . . . . . . . . > 80dB @ 10MHz
· Low Channel-to-Channel Cross Talk . . . > 80dB @ 10MHz
· TTL Compatible Inputs
· Low ON Resistance. . . . . . . . . . . . . . . . . . . . . < 100ohms
· Wide Bandwidth. . . . . . . . . . . . . . . . . . . -1.0dB @ 50MHz


Application

· RF and Video Switching
· High Frequency Cross Points
· Video Routing
· Data Acquisition


Pinout

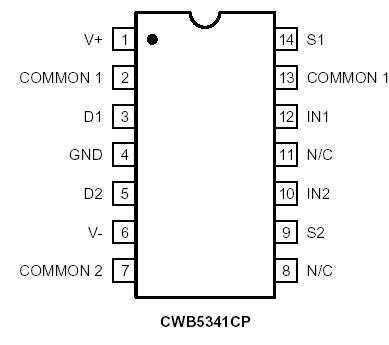

Connection Diagram


Specifications

V- Negative Supply Voltage . . . . . . . . . . . . . . . .. . -20V
V+ Positive Supply Voltage . . . . . . . . . . . . . .  . . . +20V
VIN Control Input Voltage Range . . . . . . . .. . V+ +0.3V
V- -0.3V
IL Continuous Current, any Pin except S or D. .  . 20mA
IS Continuous Current, S or D . . . . . . . . . . . . . . . 30mA
IS Peak Pulsed Current, S or D, 80msec, 1%,
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
TJ Junction Temperature Range. . . . . . . . -55 to +125
TS Storage Temperature Range . . . . . .  . -55 to +125
PD Power Dissipation (derate at 12mW/ ,
above +85). . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW


Description

The CWB5341 is a Dual Monolithic Analog Switch. Designed utilizing "T" switching techniques this device gives exceptionally low crosstalk and very high OFF isolation. The CWB5341 is built on the Calogic proprietary CMOS/DMOS process to achieve TTL compatibility with ultra low capacitance and superior switching performance.
