CWSB21FAFF, US $ 2.01-2.21 , NKK Switches, CWSB21FAFF DataSheet download, circuit diagram from SeekIC.com

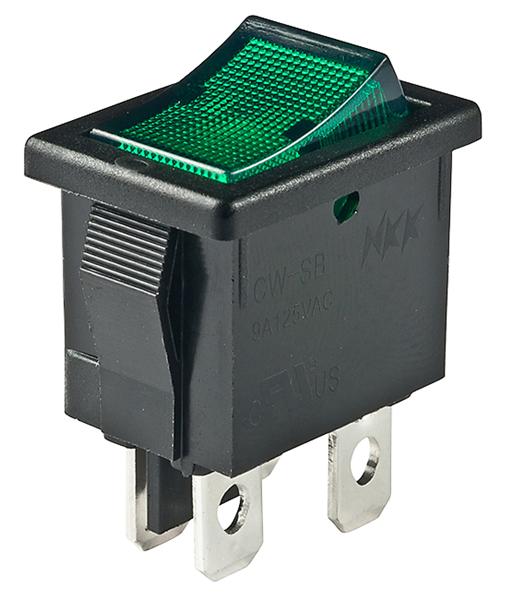

See larger image

SeekIC No. : 002630869 Detail

CWSB21FAFF: Rocker Switches & Paddle Switches DPST ON-NONE-OFF GRN

CWSB21FAFF Data Sheet

US $ 2.01~2.21 / Piece | Get Latest Price

Part Number:: CWSB21FAFF
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$2.21
$2.18
$2.15
$2.01

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CWSB11AA1F evaluate
US $.95 - 1.08 / Piece

Rocker Switches & Paddle Switches SPST ON-NONE-OFF
CWSB11AA1H evaluate
US $1.26 - 1.43 / Piece

Rocker Switches & Paddle Switches SPST ON-OFF BLK 6A HORZNTL MARK RA PC
CWSB11AA2F evaluate
US $.82 - 1.07 / Piece

Rocker Switches & Paddle Switches SPST ON-NONE-OFF

Product Details

Quick Details

Contact Form :	DPST	Switch Function :	ON - NONE - OFF
Current Rating :	9 A	Voltage Rating AC :	125 V
Termination Style :	Quick Connect	Actuator :	Rocker
Color :	Black	Mounting Style :	Snap In
Terminal Seal :	Epoxy	Contact Plating :	Silver
Illumination :	Illuminated	Illumination Color :	Green

Description

Voltage Rating DC :
Power Rating :
Actuator : Rocker
Terminal Seal : Epoxy
Termination Style : Quick Connect
Contact Plating : Silver
Color : Black
Switch Function : ON - NONE - OFF
Mounting Style : Snap In
Contact Form : DPST
Illumination : Illuminated
Voltage Rating AC : 125 V
Illumination Color : Green
Current Rating : 9 A

Parameters:

Technical/Catalog Information	CWSB21FAFF
Vendor	NKK Switches of America Inc
Category	Switches
Mounting Type	Panel Mount, Snap-In
Circuit	DPST
Switch Function	On-Off
Contact Rating @ Voltage	9A @ 125VAC
Illumination	Illuminated
Illumination Type, Color	Neon, Green
Illumination Voltage	125 VAC
Termination Style	Quick Connect - .187" (4.7mm)
Panel Cutout Dimensions	19.20mm x 12.90mm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CWSB21FAFF CWSB21FAFF 360 1730 ND 3601730ND 360-1730
