General Description
CXA1166K General Description
The CXA1166K is an 8-bit ultrahigh-speed flash A/D converter IC capable of digitizing analog signals at a maximum rate of 250 MSPS. The digital I/O level of this A/D converter is compatible with the ECL 100K/10KH/10K.
This IC is pin-compatible with the conventional CXA1076AK/CXA1176K/CXA1176AK, and can replace the conventional models easily. Compared with the conventional models, the CXA1166K has a greatly improved performance because of the new circuit design and carefully considered layout.
CXA1166K Maximum Ratings
• Supply voltage AVEE, DVEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 to +0.5 V
• Analog input voltage VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7 to +0.5 V
• Reference input voltage VRT, VRB, VRM . . . . . . . . . . . . . . . . . . . . . 2.7 to +0.5 V
| VRT VRB | . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5 V
• Digital input voltage MINV, LINV, CLK, CLK . . . . . . . . . . . . . . . . . . . .4 to +0.5 V
| CLK CLK | . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.7 V
• VRM pin input current IVRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to +3 mA
• Digital output current ID0 to ID7, IOR, ID0 to ID7, IOR . . . . . . . . . . . 30 to 0 mA
• Storage temperature Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 to +150 °C
• Analog input voltage VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7 to +0.5 V
• Reference input voltage VRT, VRB, VRM . . . . . . . . . . . . . . . . . . . . . 2.7 to +0.5 V
| VRT VRB | . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5 V
• Digital input voltage MINV, LINV, CLK, CLK . . . . . . . . . . . . . . . . . . . .4 to +0.5 V
| CLK CLK | . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.7 V
• VRM pin input current IVRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to +3 mA
• Digital output current ID0 to ID7, IOR, ID0 to ID7, IOR . . . . . . . . . . . 30 to 0 mA
• Storage temperature Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 to +150 °C
CXA1166K Features
• Differential linearity error: ±0.5 LSB or less
• Integral linearity error: ±0.5 LSB or less
• Built-in integral linearity compensation circuit
• Ultrahigh-speed operation with maximum conversion rate of 250 MSPS
• Low input capacitance: 18pF
• Wide analog input bandwidth: 250MHz (full-scale input, standard)
• Single power supply: 5.2V
• Low power consumption: 1.4W (Typ.)
• Low error rate
• Good temperature characteristics
• Capable of driving 50½ loads
• Integral linearity error: ±0.5 LSB or less
• Built-in integral linearity compensation circuit
• Ultrahigh-speed operation with maximum conversion rate of 250 MSPS
• Low input capacitance: 18pF
• Wide analog input bandwidth: 250MHz (full-scale input, standard)
• Single power supply: 5.2V
• Low power consumption: 1.4W (Typ.)
• Low error rate
• Good temperature characteristics
• Capable of driving 50½ loads
CXA1166K Typical Application
• Digital oscilloscopes
• Other apparatus requiring ultrahigh-speed A/D conversion
• Other apparatus requiring ultrahigh-speed A/D conversion

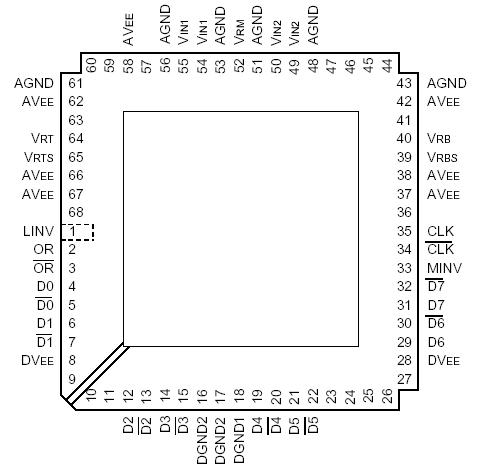

CXA1166K Connection Diagram
CXA1166K
PDF/DataSheet Download
- Datasheet: CXA1166K
- File Size: 667324 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
