CXA1310AQ General Description


The CXA1310AQ is designed to perform the basic signal processing in CCD monochrome cameras with a single chip. This bipolar lC is most suitable for compact usage and low power consumption.

CXA1310AQ Maximum Ratings

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
•Storage temperature Tstg  . . . . . . . . . . .65 to +150 °C
• Operating temperature Topr . . . . . . . . .  20 to +75 °C
• Allowable power dissipation PD  . . . . . . . . . . . . .500 mW

CXA1310AQ Features

• Processing from CCD output to 75 video output with a single chip
• Wide variable AGC (4 to 32dB Typ.)
• Built-in operational amplifier for AGC loop
• 75 line capacitance minimized using sag compensation function
• Variable white clip level realize wide dynamic range (140 IRE)

CXA1310AQ Typical Application

CCD monochrome camera

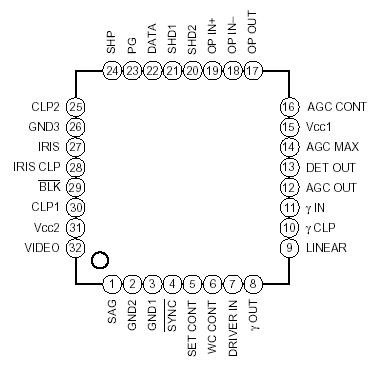

CXA1310AQ Connection Diagram
