Part Number: CXA1372BS









Description: The CXA1372BQ/BS is a bipolar IC developed for RF signal processing (focus OK, mirror, defect detectio...


Urgent Purchase

CXA1372BS General Description


The CXA1372BQ/BS is a bipolar IC developed for RF signal processing (focus OK, mirror, defect detection, EFM comparator) and various servo control.

CXA1372BS Maximum Ratings

• Supply voltage VCC VEE  . . . . . . . . . . . . . . . . . . . . . . . .12 V
• Operating temperature Topr . . . . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . .  457 (CXA1372BQ) mW
                                                      . . . . . . .833 (CXA1372BS) mW

CXA1372BS Features

• Dual ±5V and single 5V power supplies
• Low power consumption
• Fewer external parts
• Disc defect countermeasure circuit
• Fully compatible with the CXA1182 for microcomputer software

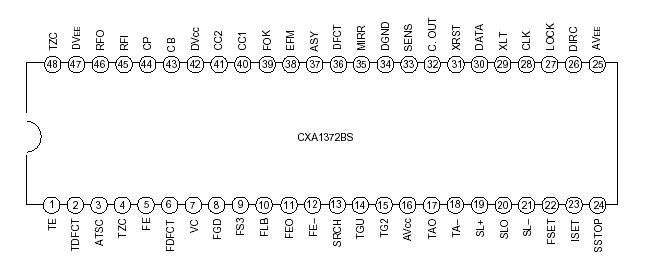

CXA1372BS Connection Diagram

CXA1372BS Connection Diagram
