Features:

• Inductor (coil) is unnecessary
• The six parameters (low frequency gain, medium frequency gain, peaking gain, medium frequency compensation frequency, peaking frequency, and Q) required for recording equalizer amplifiers can be set independently with external resistance
• Low frequency boost is possible with an external capacitor
• Built-in recording mute function (requiring only an external time constant circuit to implement soft mute)
• Built-in 2 channels
• Small package




Application

Recording equalizer amplifier for stereo analog cassette decks


Pinout

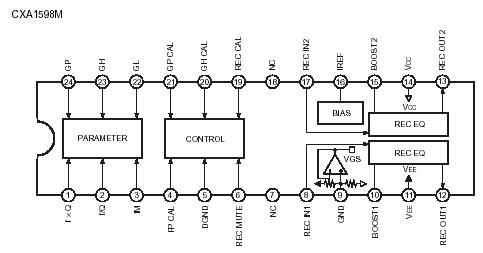

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 V
• Operating temperature Topr  . . . . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD
                                       (CXA1598M)  . . . . . . . . . . . . . . .570 mW
                                        (CXA1598S)  . . . . . .. . . . . . . . .880 mW


Description

The CXA1598M/S is a bipolar IC developed for recording equalizer amplifier in analog cassette decks. Incorporating the filter circuit has eliminated the external inductor. Also, each of the six parameters required for equalizer amplifiers can be set independently with external resistance.
