Part Number: CXA1998BQ



MFG: SONY

Package Cooled: QFP

D/C: 04+

Description: The CXA1998BQ is an IC developed for analog signal processing in tape recorders. Processing for both the recording and ...


Urgent Purchase

CXA1998BQ General Description


The CXA1998BQ is an IC developed for analog signal processing in tape recorders. Processing for both the recording and playback systems is achieved on one chip.

CXA1998BQ Maximum Ratings

• Supply voltage VCC, VDD . . . . . . . . . . . . . . . . . . .12 V
• Operating temperature Topr  . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . .65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . 645 mW

CXA1998BQ Features

• 11-bit serial data interface
• Recording/playback mute function
• Recording equalizer Gp and Fp can be adjusted externally.
• AGC (Automatic Gain Control)
• Comparator for AMS (Automatic Music Sensor)
• Recording/playback equalizer amplifier with 1.7 times speed switching

CXA1998BQ Typical Application

All analog signal processing in the cassette decks of tape recorders and compact music centers

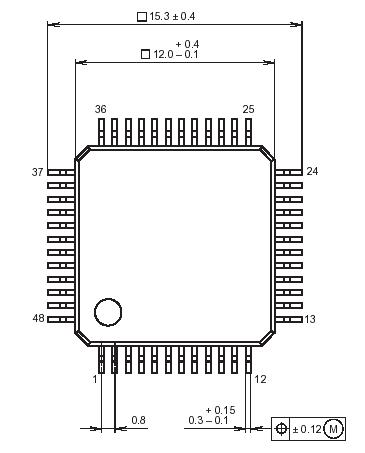

CXA1998BQ Connection Diagram

CXA1998BQ Connection Diagram
