Product Details

Description



Features:

• Differential linearity error: ±0.5LSB or less
• Integral linearity error: ±0.5LSB or less
• High-speed operation with a maximum conversion rate of 120MSPS
• Low input capacitance: 21pF
• Wide analog input bandwidth: 150MHz
• Low power consumption: 760mW
• Low error rate
• Excellent temperature characteristics
• 1: 2 demultiplexed output
• 1/2 frequency divided clock output (with reset function)
• Compatible with ECL, PECL and TTL digital input levels
• Single +5V power supply operation available
• Surface mounting package


Application

• Magnetic recording (PRML)
• Communications (QPSK, QAM)
• LCDs
• Digital oscilloscopes


Pinout

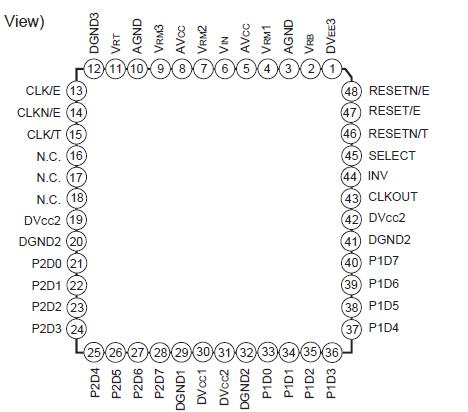

Connection Diagram


Specifications

• Supply voltage AVCC, DVCC1, DVCC2......0.5 to +7.0 V
                           DGND3 ..........................0.5 to +7.0 V
                           DVEE3 ............................7.0 to +0.5 V
                           DGND3 DVEE3 ............0.5 to +7.0 V
• Analog input voltage VIN ..............VRT 2.7 to AVCC V
• Reference input voltage VRT ...................2.7 to AVCC V
                                         VRB .........VIN 2.7 to AVCC V
                                         |VRT VRB| ...................2.5 V
• Digital input voltage ECL (***/E*1) ....DVEE3 to +0.5 V
                                   PECL (***/E) ....0.5 to DGND3 V
                                   TTL (***/T, INV, PS)..0.5 to DVCC1 V
                                   other (SELECT)...0.5 to DVCC1 V
                                   VID*2 (|***/E ***N/E|)... 2.7 V
• Storage temperature Tstg .................65 to +150 °C
• Allowable power dissipation PD ...........................1.2 W
(when mounted on a glass fabric base epoxy board with 76mm x 114mm, 1.6mm thick)


Description

The CXA3026Q is an 8-bit high-speed flash A/D converter capable of digitizing analog signals at the maximum rate of 120MSPS. ECL, PECL or TTL can be selected as the digital input level in accordance with the application. The TTL digital output level allows 1: 2 demultiplexed output.
