CXA3506R

Features: • Supply voltage: 5V, 3.3V• Power consumption: 1.7W typ. (120MSPS)• 144-pin LQFP• 3-ch AMP and PLL eliminate design time for mutual connections.Application• LCD monitors• LCD projectors• Digital TVs• PDPsPinoutSpecifications Item ...

product image

CXA3506R Picture
See larger image
SeekIC No. : 004318372 Detail

CXA3506R: Features: • Supply voltage: 5V, 3.3V• Power consumption: 1.7W typ. (120MSPS)• 144-pin LQFP• 3-ch AMP and PLL eliminate design time for mutual connections.Application• L...

CXA3506R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA3506R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage: 5V, 3.3V
• Power consumption: 1.7W typ. (120MSPS)
• 144-pin LQFP
• 3-ch AMP and PLL eliminate design time for mutual connections.


Application

• LCD monitors
• LCD projectors
• Digital TVs
• PDPs


Pinout

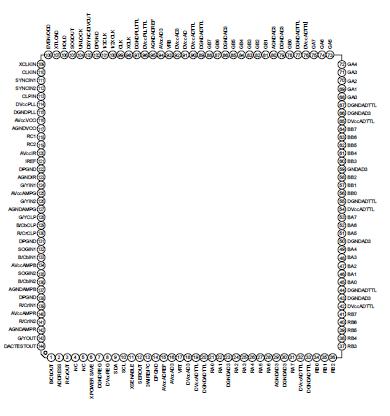

Connection Diagram


Specifications

Item
Maximum ratings
Unit
Supply voltage DVCCREG, AVCCADREF, DVCCADTTL, DVCCAD, DVCCPLLTTL, AVCCVCO, DVCCPLL, AVCCIR, AVCCAMPR, AVCCAMPG, AVCCAMPB
5.5
V
AVCCAD3, DVCCAD3
5.5
V
Input voltage ADDRESS, XPOWERSAVE, XSENABLE, 3WIRE/I2C, HOLD, XTLOAD, EVEN/ODD, XCLKIN, CLKIN, SYNCIN1, SYNCIN2, CLPIN, RC1, RC2, R/CrIN1, R/CrIN2, R/CrCLP, G/YCLP, B/CbCLP, SOGIN1, G/YIN1, SOGIN2, G/YIN2, B/CbIN1, B/CbIN2,
RCrOUT, G/YOUT, B/CbOUT, DACTESTOUT
GND 0.5 to 5V VCC + 0.5
or 5.5
V
SDA, SCL
GND 0.5 to 5.5
V
Storage
temperature		 Tstg
65 to +150
°C
Allowable power
dissipation		 PD
5
W



Description

The CXA3506R is a 3-channel 8-bit 120MSPS A/D converter with built-in amplifier and PLL developed for LCD projectors and LCD monitors.

The CXA3506R inputs RGB graphics signals from personal computers or others. After the input levels are controlled, the A/D conversion is performed with a clock generated by PLL.The digital output levels are compatible with TTL.

This IC CXA3506R operates at a maximum conversion rate of 120MHz, and can support up to XGA. Control register supports both I2C and 3-wire bus.
