Part Number: CXA3562AR



MFG: SONY

Package Cooled: QFP

D/C: 06+

Description: The CXA3562AR is a driver IC developed for use with Sony polycrystalline silicon TFT LCD panels. It su...


Urgent Purchase

CXA3562AR General Description


The CXA3562AR is a driver IC developed for use with Sony polycrystalline silicon TFT LCD panels. It supports digital 2-parallel and single input, and the input data is analog demultiplexed into 12 phases and output. The CXA3562AR can directly drive an LCD panel, and the VCOM setting circuit and precharge pulse waveform generator are also on-chip.

CXA3562AR Maximum Ratings

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 V
                           VDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 V
• Operating temperature Topr  . . . . . . . . . . . . .20 to +70 °C
• Storage temperature Tstg  . . . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . . . . . 2000 mW

CXA3562AR Features

• Supports 10-bit 2-parallel and single input
• Supports signals up to UXGA (1/2 clock when using UXGA signals)
• Low output deviation by on-chip output offset cancel circuit
• Supports both line inversion and dot and line inversion
• On-chip timing generator with ECL
• VCOM voltage generation circuit
• Precharge pulse waveform generation circuit

CXA3562AR Typical Application

• LCD projectors and other video equipment

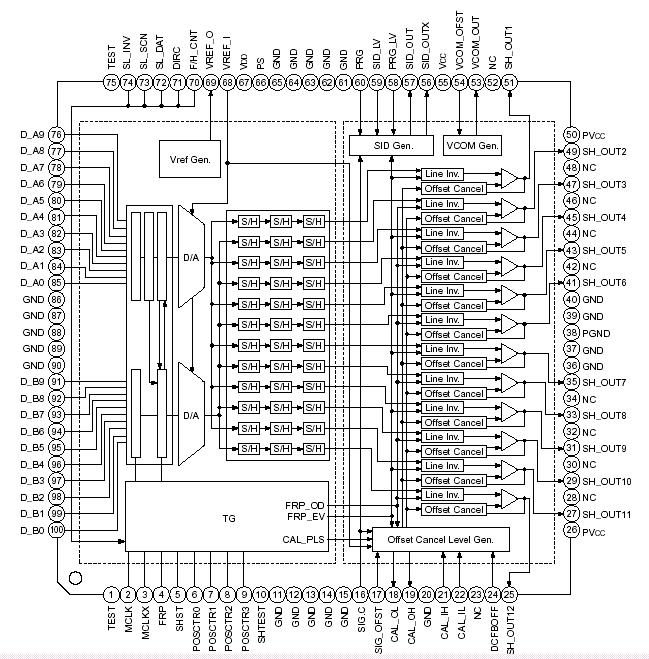

CXA3562AR Connection Diagram

CXA3562AR Connection Diagram

CXA3562AR datasheet

CXA3562AR
PDF/DataSheet Download
