Features:

• Conforms to ANSI X3T11 Fibre Channel standard
• Single 3.3V power supply
• Low power consumption: 380mW (Typ.)
• Low jitter
• PLL lock detection circuit
• Port bypass circuit
• Small plastic package (30-pin SSOP)

Application

• Fibre channel arbitrated loop 1.0625Gbaud HUB
• Disk array

Pinout

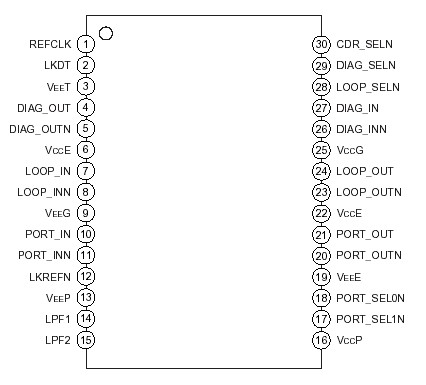

Connection Diagram

Specifications

Description	Symbol	Min.	Typ.	Max.	Unit	Comments
Supply voltage	V_CC	0.3		4	V
TTL DC input voltage	V_{I_}T	0.5		5.5	V
ECL DC input voltage	V_{I_}E	V_CC 2		V_CC	V
ECL input voltage between differential signal	I_{I_}E	4		4	V
TTL output current (High)	I_{OH_}T	20		0	mA
TTL output current (Low)	I_{OL_}T	0		20	mA
ECL output current	I_{O_}E	-30		0	mA
Storage temperature	T_stg	65		150

Description

The CXB1595AN is a clock and data recovery IC for fibre channel 1.0625Gbaud with a built-in PLL. This IC incorporates a port bypass circuit and is suitable for disk array and FC-AL HUB, etc.
