CXB1596AR

Features: • Transmitter and receiver in a single chip• ANSI X3T11 Fibre Channel compatible (FC_0) at 1.0625Gbaud• IEEE802.3z Gigabit Ethernet compatible at 1.25Gbaud• Conforms to 10-bit interface specification• TTL/ECL compatible• PLL for clock generation and cl...

product image

CXB1596AR Picture
See larger image
SeekIC No. : 004318415 Detail

CXB1596AR: Features: • Transmitter and receiver in a single chip• ANSI X3T11 Fibre Channel compatible (FC_0) at 1.0625Gbaud• IEEE802.3z Gigabit Ethernet compatible at 1.25Gbaud• Conform...

CXB1596AR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXB1596AR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Transmitter and receiver in a single chip
• ANSI X3T11 Fibre Channel compatible (FC_0) at 1.0625Gbaud
• IEEE802.3z Gigabit Ethernet compatible at 1.25Gbaud
• Conforms to 10-bit interface specification
• TTL/ECL compatible
• PLL for clock generation and clock & data recovery
• Byte synchronization detector (positive character of Comma)
• Frequency autolock function
• Low power consumption (620mW typ.)
• 64-pin plastic LQFP package (10mm ´ 10mm)


Application

• 1.0625Gbaud Fibre Channel Interface
• 1.25Gbaud Gigabit Ethernet Interface
• Work Station/Server/HDD Interface
• High-speed data communications
• Switched networks


Pinout

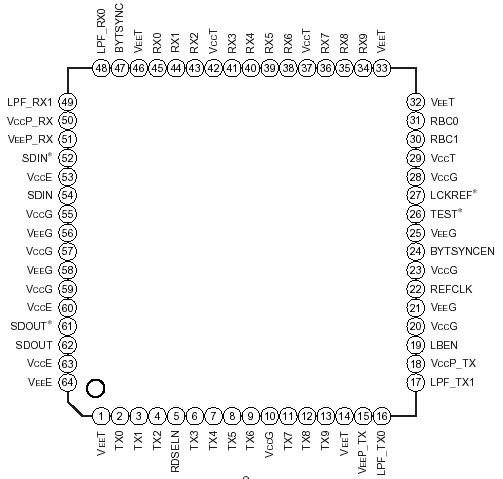

Connection Diagram


Specifications

• Supply voltage                                                VCC    0.3 to +4             V
• TTL DC input voltage                                       VI_T    0.5 to +5.5         V
• ECL DC input voltage                                      VI_E    VCC 2 to VCC    V
• ECL differential input voltage amplitude         VIS_E       4 to +4          V
• TTL high level output current                          IOH_T       20 to 0       mA
• TTL low level output current                           IOL_T          0 to 20        mA
• ECL output current                                         IO_E        30 to 0         mA
• Storage temperature                                     Tstg        65 to +150
• Allowable power dissipation                           PD                 880          mW


Description

The CXB1596AR is a transceiver IC with a built-in PLL for Fibre Channel and Gigabit Ethernet. For a receiver 1.0625/1.25Gbaud serial data is received and output as 10-bit parallel data; for a transmitter 10-bit parallel data is received and output as 1.0625/1.25Gbaud serial data.
