CXD1852Q

Features: • Supply voltage: 3.3 ± 0.3V• Input and output voltages: LVTTL compatible• 5V can be applied as the input voltage (excluding some pins)• Allows decoding of MPEG1 system, video and audio layers• Built-in CD-ROM decoder allows direct connection with a CD-DSP&#...

product image

CXD1852Q Picture
See larger image
SeekIC No. : 004318462 Detail

CXD1852Q: Features: • Supply voltage: 3.3 ± 0.3V• Input and output voltages: LVTTL compatible• 5V can be applied as the input voltage (excluding some pins)• Allows decoding of MPEG1 sy...

CXD1852Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD1852Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage: 3.3 ± 0.3V
• Input and output voltages: LVTTL compatible
• 5V can be applied as the input voltage (excluding some pins)
• Allows decoding of MPEG1 system, video and audio layers
• Built-in CD-ROM decoder allows direct connection with a CD-DSP
• CD-ROM decoded output can be transferred to and stored in an external DRAM
• RGB and YCbCr video data output allowed
• Built-in video sync generator
• Audio data output can support various DAC
• Supports various special playback modes
• Video CD PAL high resolution still picture can be decoded with a single 4-Mbit DRAM
• 8-bit parallel and 4-line serial host interfaces
• CD-DA through operation allowed


Application

Video CD players, MPEG1 decoder boards, etc.


Pinout

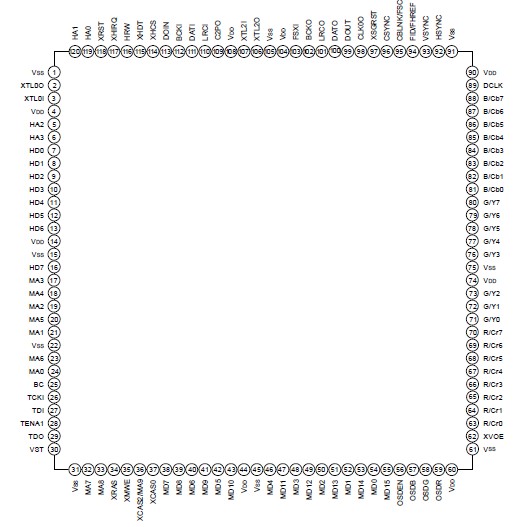

Connection Diagram


Specifications

Item

Symbol

Rating

Unit

Remarks

Supply voltage

VDD

0.5 to +4.6

V



Input pin voltage

VI

0.5 to VDD + 0.5

V

*1

Input pin voltage

VI

0.5 to +5.5

V

*2

Output pin voltage

VO

0.5 to VDD + 0.5

V

*3

Output pin voltage

VO

0.5 to +5.5

V

*4

I/O pin voltage

VI/O

0.5 to +5.5

V



Allowable power dissipation

PD

1.0

W



Operating temperature

Topr

20 to +75

°C



Storage temperature

Tstg

55 to +150

°C






Description

The CXD1852Q is a single-chip MPEG1 decoder with a built-in CD-ROM decoder which allows decoding of MPEG1 system, video and audio layers. A built-in CD-ROM decoder enables direct connection with a CD-DSP. Combining this chip with a control microcomputer and 4-Mbit DRAM, etc. allows configuration of a MPEG1 decoding system for video CD players, etc.
