Features:

• Resolution 10-bit
• Maximum conversion speed 85MSPS
• RGB 3-channel input/output
• Differential linearity error ±0.5LSB
• Low power consumption 275mW (200 load for 2Vp-p output)
• Single +5V power supply
• Low glitch
• 48-pin QFP package

Pinout

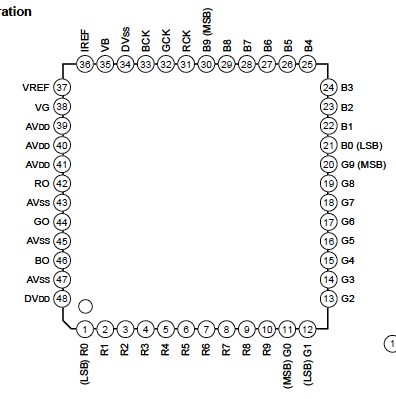

Connection Diagram

Specifications

• Supply voltage AVDD, DVDD....................................... 7 V
• Input voltage (All pins) VIN ......VDD + 0.5 to VSS 0.5 V
• Output current IOUT....................................... 0 to 15 mA
• Storage temperature Tstg .....................55 to +150 °C

Description

The CXD2309AQ is a 10-bit high-speed D/A converter for video band, featuring RGB 3-channel input/ output. This is ideal for use in high-definition TVs and high-resolution displays.
