Product Details

Description



Features:

• Electronic iris control drive
• Generates system clocks in response to the CXA1390AR series
• Generates timing pulses to drive the 510H system CCD image sensor
• H driver for CCD (5V direct drive for Type 1/3 CCD)



Application

CCD monitoring cameras


Pinout

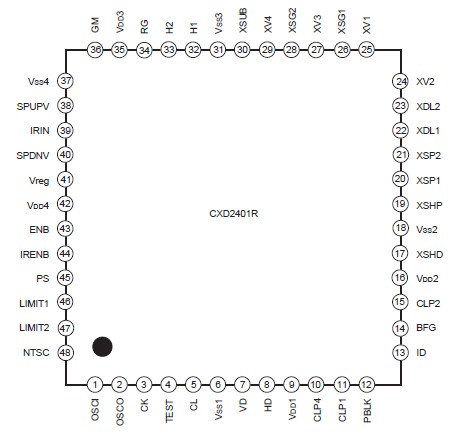

  Connection Diagram


Specifications

Supply voltage VDD VSS0.5 to +7.0 V
Input voltage VI VSS 0.5 to VDD + 0.5 V
Output voltage VO VSS 0.5 to VDD + 0.5 V
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C



Description

The CXD2401R is an IC which performs electronic iris control by applying a CCD electronic shutter.
