CXD2452R

Features: • Base oscillation frequency 36.81MHz (2340fH)• Monitoring readout allowed• High-speed/low-speed electronic shutter function• Horizontal driver for CCD image sensor• Signal processor IC system clock generation 1170fH, 780fH• Vertical/horizontal sync (S...

product image

CXD2452R Picture
See larger image
SeekIC No. : 004318519 Detail

CXD2452R: Features: • Base oscillation frequency 36.81MHz (2340fH)• Monitoring readout allowed• High-speed/low-speed electronic shutter function• Horizontal driver for CCD image sensor...

CXD2452R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2452R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Base oscillation frequency 36.81MHz (2340fH)
• Monitoring readout allowed
• High-speed/low-speed electronic shutter function
• Horizontal driver for CCD image sensor
• Signal processor IC system clock generation 1170fH, 780fH
• Vertical/horizontal sync (SSG) timing generation


Application

• Digital still cameras
• Personal computer image input

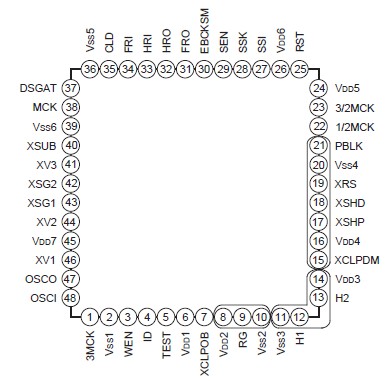

Pinout

Connection Diagram


Specifications

Supply voltage VDD VSS0.5 to +7.0 V
Input voltage VI VSS 0.5 to VDD + 0.5 V
Output voltage VO VSS 0.5 to VDD + 0.5 V
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C



Description

The CXD2452R is a timing generator which generates the timing pulses for performing progressive scan readout for digital still cameras and personal computer image input applications using the ICX098AK CCD image sensor.
