CXD2467Q

Features: • Various picture quality adjustment functions such as user adjustment, white balance adjustment and gamma correction• OSD MIX, black frame processing, mute and limiter functions• Drives various data projector LCD panels such as SXGA (LCX028) and XGA (LCX017 and LCX023...

product image

CXD2467Q Picture
See larger image
SeekIC No. : 004318527 Detail

CXD2467Q: Features: • Various picture quality adjustment functions such as user adjustment, white balance adjustment and gamma correction• OSD MIX, black frame processing, mute and limiter functi...

CXD2467Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2467Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Various picture quality adjustment functions such as user
   adjustment, white balance adjustment and gamma correction
• OSD MIX, black frame processing, mute and limiter functions
• Drives various data projector LCD panels such as
   SXGA (LCX028) and XGA (LCX017 and LCX023)
• Controls the sample-and-hold position of the CXA2112R sample-and-hold driver
• Line inversion and field inversion signal generation
• Supports AC drive of LCD panels during no signal


Application

LCD projectors and other video equipment


Pinout

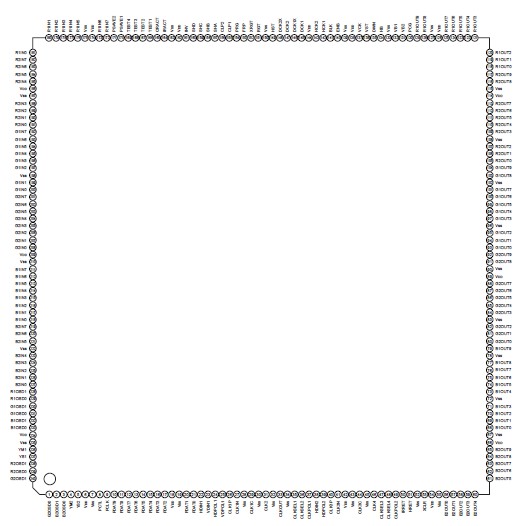

Connection Diagram


Specifications

Supply voltage VDD VSS0.5 to +4.0 V
Input voltage VI VSS 0.5 to VDD + 0.5 V
Output voltage VO VSS 0.5 to VDD + 0.5 V
Storage temperature Tstg 55 to +150 °C



Description

The CXD2467Q incorporates digital signal processor type RGB driver and timing generator functions onto a single IC. Operation is possible with a system clock up to 135MHz (max.). This IC can process video signals in bands up to SXGA standard, and can output the timing signals for driving various LCD panels such as SXGA (LCX028) and XGA (LCX017 and LCX023).
