Part Number: CXD2470R



MFG: 34

Package Cooled: SONY



Description: The CXD2470R is a timing generator IC which generates the timing pulses for performing frame readout u...


Urgent Purchase

CXD2470R General Description


The CXD2470R is a timing generator IC which generates the timing pulses for performing frame readout using the ICX224,ICX284,ICX202 and ICX232 CCD image sensor.

CXD2470R Maximum Ratings

Supply voltage

VDD

 VSS 0.3 to +7.0

 V

VL

10.0 to VSS V

VH

VL 0.3 to +26.0 V
Input voltage (digital)

VI

VSS 0.3 to VDD + 0.3 V
Output voltage

VO1

VSS 0.3 to VDD + 0.3 V

VO2

VL 0.3 to VSS + 0.3 V

VO3

 VL 0.3 to VH + 0.3 V
Operating temperature

Topr

 20 to +75 °C
Storage temperature

Tstg

55 to +150 °C

CXD2470R Features

• Base oscillation frequency 24.00 to 36.00MHz (max.)
• High-speed/low-speed shutter function
• Supports quadruple-speed readout drive
• Horizontal driver for CCD image sensor
• Vertical driver for CCD image sensor

CXD2470R Typical Application

Digital still cameras

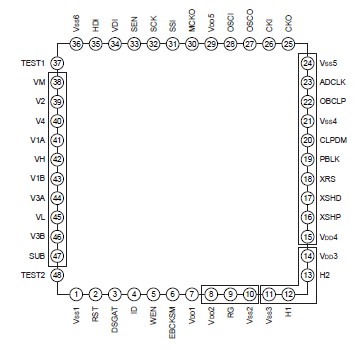

CXD2470R Connection Diagram

CXD2470R Connection Diagram
