Purchase CXD2508AR, In-stock CXD2508AR From SeekIC.
MFG:SONY Package Cooled:06+ D/C:QFP-80
- Table of contents:
CXD2508AR
-
Suppliers
DataSheet
General Description
CXD2508AR Maximum Ratings
|
Supply voltage |
VDD |
0.3 to 7.0 |
V |
|
Input voltage |
VI |
0.3 to 7.0 |
V |
| Input voltage | VIN |
Vss0.3V (min.) VDD+0.3 (max.) |
V |
|
Output voltage |
VO |
0.3 to 7.0 |
V |
|
Storage temperature |
Tstg |
40 to 125 |
°C |
|
Supply voltage variation |
|
VSSAVSS 0.3V (min.) +0.3V (max.) |
|
|
VDDAVDD 0.3V (min.) +0.3V (max.) |
CXD2508AR Features
DSP block
• Digital PLL
• EFM frame sync protection
• SEC strategy-based error correction
• Subcode demodulation, CRC checking
• Digital spindle servo
• Servo auto sequencer
• Asymmetry compensation circuit
• Digital audio interface output
• 16K RAM
• Double-speed playback capability
• New microcomputer interface circuit
Digital filter, DAC block
• Double-speed playback capability
• Digital de-emphasis
• Digital attenuation
• No-sound data detection circuit
• 4 Fs oversampling filter
• Secondary Æ· noise shaper
• PWM-system pulse conversion output
• Digital PLL
• EFM frame sync protection
• SEC strategy-based error correction
• Subcode demodulation, CRC checking
• Digital spindle servo
• Servo auto sequencer
• Asymmetry compensation circuit
• Digital audio interface output
• 16K RAM
• Double-speed playback capability
• New microcomputer interface circuit
Digital filter, DAC block
• Double-speed playback capability
• Digital de-emphasis
• Digital attenuation
• No-sound data detection circuit
• 4 Fs oversampling filter
• Secondary Æ· noise shaper
• PWM-system pulse conversion output
CXD2508AR Typical Application
CD players

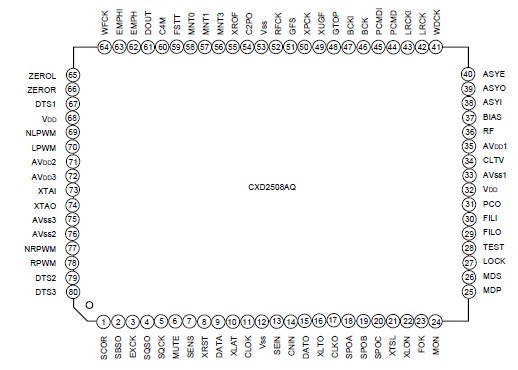

CXD2508AR Connection Diagram
CXD2508AR
PDF/DataSheet Download
- Datasheet: CXD2508AR
- File Size: 878761 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
