General Description
CXD2570 General Description
The HI2570, CXD2570 is a 1-bit stereo AD/DA converter which uses a 2nd-order system noise shaper. This LSI is especially suited for sampling frequency between 8kHz and 32kHz.
CXD2570 Maximum Ratings
Supply Voltage (VDD). . . . . . . . . . . . . . . . . . . .. . . VSS0.5V to 7.0V
Input Voltage (V1). . . . . . . . . . . . . . . . . . .VSS 0.5V to VDD + 0.5V
Output Voltage (V0) . . . . . . . . . . . . .... . . .VSS 0.5V to VDD + 0.5V
Operating Temperature (Topr) . . . . . . . . . . . . . . . . . -20oC to 75 oC
Storage Temperature (Tstg . . . . . . . . . . . . . . . . . . . -55oC to 150oC
Input Voltage (V1). . . . . . . . . . . . . . . . . . .VSS 0.5V to VDD + 0.5V
Output Voltage (V0) . . . . . . . . . . . . .... . . .VSS 0.5V to VDD + 0.5V
Operating Temperature (Topr) . . . . . . . . . . . . . . . . . -20oC to 75 oC
Storage Temperature (Tstg . . . . . . . . . . . . . . . . . . . -55oC to 150oC
CXD2570 Features
• Two-Channel AD/DA Converters and Their Each Decimation
and Oversampling Digital Filter in a Single Chip
• Simplified External Parts with a Built-In Analog Circuit Around AD Converter
• Distortion
- ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.015%
- DAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.009% (-3dB)
• S/N Ratio (Typical Values when FS = 16kHz)
- ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80dB
- DAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90dB
• Ripple in the Digital Filter Pass Band . . . . . . . ±0.05dB<
• Attenuation in the Digital Filter Rejection Band. . . 45dB>
and Oversampling Digital Filter in a Single Chip
• Simplified External Parts with a Built-In Analog Circuit Around AD Converter
• Distortion
- ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.015%
- DAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.009% (-3dB)
• S/N Ratio (Typical Values when FS = 16kHz)
- ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80dB
- DAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90dB
• Ripple in the Digital Filter Pass Band . . . . . . . ±0.05dB<
• Attenuation in the Digital Filter Rejection Band. . . 45dB>
CXD2570 Typical Application
- Telephones, TV Conference Systems, Language Laboratory Equipment, TV Game Equipment and Electronic Musical Instrument

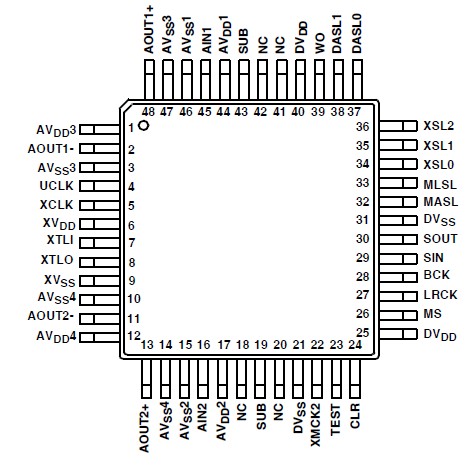

CXD2570 Connection Diagram
CXD2570
PDF/DataSheet Download
- Datasheet: CXD2570
- File Size: 652418 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
