Product Details

Description

Features:

• 1´, 2´, 4´ speed playback supported
• 16K-RAM
• EFM data demodulation
• Enhanced EFM frame sync signal protection
• SEC strategy-based error correction
• Subcode demodulation and Sub Q data error detection
• Digital spindle servo
• 16-bit traverse counter
• Asymmetry compensation circuit
• CPU interface on serial bus
• Error correction monitor signal, etc. output from a new CPU interface
• Servo auto sequencer
• Digital audio interface outputs
• Digital level meter, peak meter
• CD TEXT data demodulation

Application

CD players

Pinout

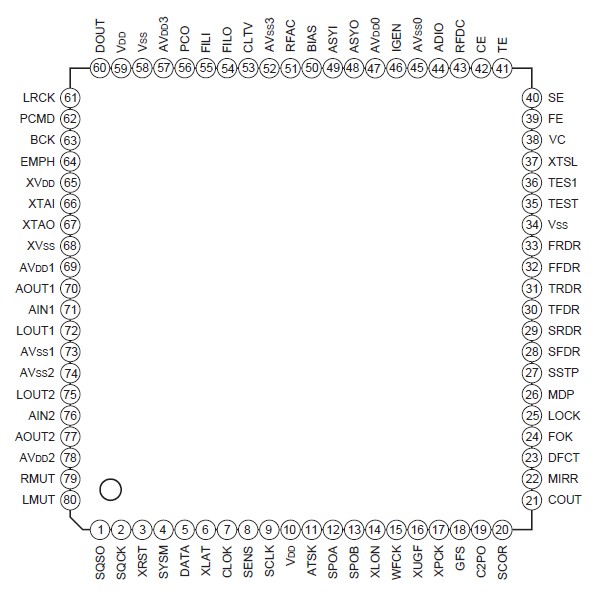

Connection Diagram

Specifications

Supply voltage	V_DD	0.5 to +4.6	V
Input voltage	V_I	V_DD + 0.5 to V_ss 0.5	V
	(V_SS 0.3V to V_DD +0.3V)
Output voltage	V_O	V_DD + 0.5 to V_ss 0.5	V
Storage temperature	T_stg	55 to +150	°C
Supply voltage difference	V_SS AV_SS 0.3 to +0.3		V
	V_DD AV_DD 0.3 to +0.3		V

Description

The CXD2587Q is a digital signal processor LSI for CD players. This LSI incorporates a digital servo, digital filter, zero detection circuit, 1-bit DAC and analog low-pass filter.
