CXD2589Q

Features: Digital Signal Processor (DSP) Block• Playback mode supporting CAV (Constant Angular Velocity) Frame jitter-free Allows 0.5 to double-speed continuous playback Allows relative rotational velocity readout Supports external spindle control• Wide capture range playback mode ...

product image

CXD2589Q Picture
See larger image
SeekIC No. : 004318552 Detail

CXD2589Q: Features: Digital Signal Processor (DSP) Block• Playback mode supporting CAV (Constant Angular Velocity) Frame jitter-free Allows 0.5 to double-speed continuous playback Allows relative rot...

CXD2589Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2589Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Digital Signal Processor (DSP) Block
• Playback mode supporting CAV (Constant Angular Velocity)
  Frame jitter-free
  Allows 0.5 to double-speed continuous playback
  Allows relative rotational velocity readout
  Supports external spindle control
• Wide capture range playback mode
   Spindle rotational velocity following method
    Supports normal-speed and double-speed playback
• 16K RAM
• EFM data demodulation
• Enhanced EFM frame sync protection
• SEC strategy-based error correction
• Subcode demodulation and Sub Q data error
detection
• Digital spindle servo
• 16-bit traverse counter
• Asymmetry compensation circuit
• Serial bus-based CPU interface
• Error correction monitor signals, etc. are output
from a new CPU interface.
• Servo auto sequencer
• Digital audio interface output
• Digital peak meter
Digital Filter, DAC, Analog Low-Pass Filter Block
• DBB (Digital Bass Boost)
• Supports double-speed playback
• Digital de-emphasis
• Digital attenuation function
• Zero detection function
• 8Fs oversampling digital filter
• S/N: 100dB or more (master clock: 384Fs typ.)
Logical value: 109dB
• THD + N: 0.007% or less (master clock: 384Fs typ.)
• Rejection band attenuation: 60dB or less


Application

CD players


Pinout

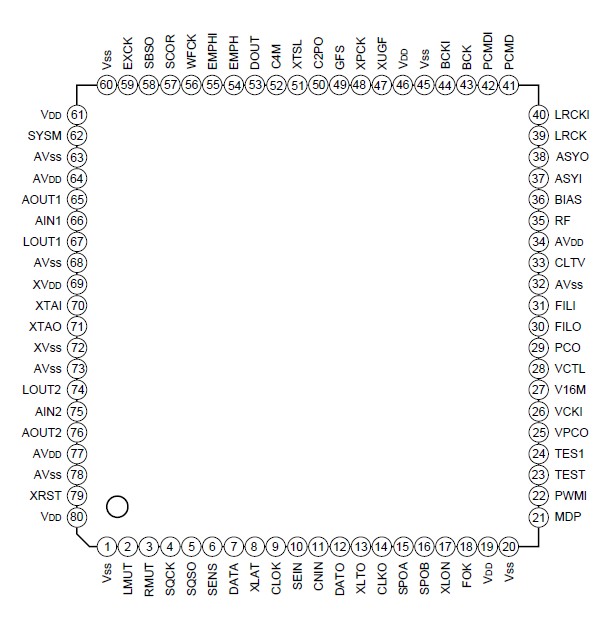

Connection Diagram


Specifications

Supply voltage

VDD

0.3 to 7.0

V

Input voltage

VI

0.3 to 7.0

V

(VSS 0.3V to VDD + 0.3V)

Output voltage

VO

0.3 to 7.0

V

Storage temperature

Tstg

40 to 125

°C

Supply voltage variation

Vss AVss 0.3 to +0.3

V

VDD AVDD 0.3 to +0.3

V



Description

The CXD2589Q is a digital signal processor LSI for CD players and is equipped with built-in digital filters, zero detection circuit, 1-bit DAC, and analog low-pass filter on a single chi.
