CXD2724AQ-3

Features: • Dolby Pro Logic Surround decoding with a single chip• 2-channel 1-bit AD converter, decimation filter and prefilter operational amplifier• 4-channel 1-bit DA converter, oversampling filter and post filter• Analog switch for DSP bypass• Analog electronic at...

product image

CXD2724AQ-3 Picture
See larger image
SeekIC No. : 004318560 Detail

CXD2724AQ-3: Features: • Dolby Pro Logic Surround decoding with a single chip• 2-channel 1-bit AD converter, decimation filter and prefilter operational amplifier• 4-channel 1-bit DA converter,...

CXD2724AQ-3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2724AQ-3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dolby Pro Logic Surround decoding with a single chip
• 2-channel 1-bit AD converter, decimation filter and prefilter operational amplifier
• 4-channel 1-bit DA converter, oversampling filter and post filter
• Analog switch for DSP bypass
• Analog electronic attenuator (+1.5 to 29.5dB) for center/surround channel trim
• 24K-bit SRAM for short delay
• No separation or other variance for digital processing
• External parts reduced by incorporating analog circuits


Application

Equipment having Dolby Pro Logic Surround function such as AV amplifiers, receivers and compact music systems




Pinout

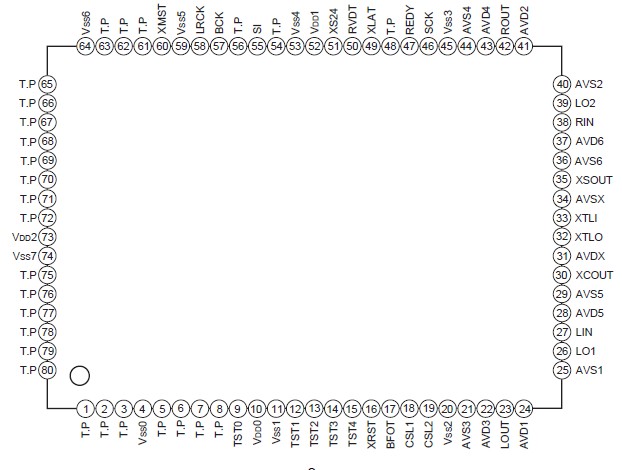

Connection Diagram


Specifications

Supply voltage VDD VSS0.5 to +7.0 V
Input voltage VI VSS 0.5 to VDD + 0.5 V
Output voltage VO VSS 0.5 to VDD + 0.5 V
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C



Description

The CXD2724AQ-3 is a CMOS LSI developed for Dolby Pro Logic Surround. A SRAM for short delay and AD/DA converters are built in, and all functions necessary for Dolby Pro Logic Surround such as an adaptive matrix, a passive decoder including BNR, auto input balance, a noise sequencer and center channel mode control are contained on a single chip. Further, this LSI CXD2724AQ-3 also supports Dolby 3 Stereo and Virtual Dolby Surround.
