Product Details

Description



Features:

• 16-channel GPS receiver capable of simultaneously receiving 16 satellites
• Supports DARC system FM multiplexed differential GPS
• All-in-view measurement
• 2-satellite measurement
• Timer supporting GPS time
• High performance 32-bit RISC CPU
• 32K-byte RAM
• 3-channel UART
• Baud rate generator
• Supports 1.2K, 2.4K, 4.8K, 9.6K, 19.2K and 38.4K baud
• Supports 1/2/4-byte buffer mode
• 23-bit general-purpose I/O port capable of
  defining input/output independently for each bit


Pinout

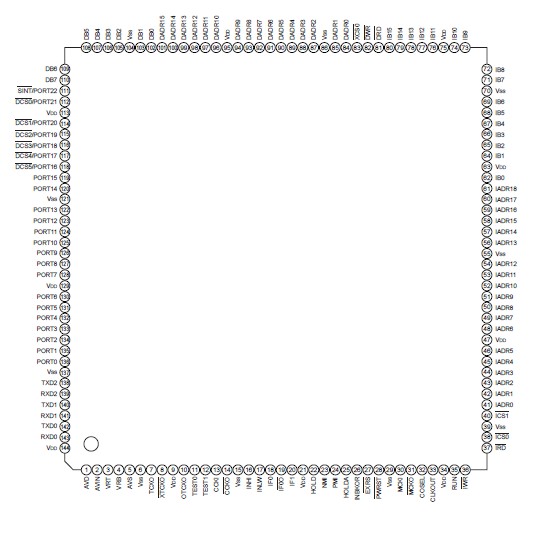

Connection Diagram


Specifications

Supply voltage VDD VSS0.5 to +4.6 V
Input voltage VI VSS 0.5 to VDD + 0.5 V
Output voltage VO VSS 0.5 to VDD + 0.5 V
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C



Description

The CXD2930BR is a dedicated LSI for the GPS (Global Positioning System) satellite-based position measurement system. This LSI contains a 32-bit RISC CPU, RAM, UART, timer, etc.

This LSI CXD2930BR, used together with an external ROM and RF LSI (CXA1951AQ), enables the configuration of a 3-chip system capable of measuring its position anywhere on the globe.
