Features:

• Supports 510H/760H system CCD image sensors
• Supports EIA/CCIR modes
• Built-in CDS and AGC circuits
• Built-in 10-bit A/D converter
• Built-in 9-bit D/A converter
• Analog and digital signal output
• Right/left inverted (mirror image) output function
• Horizontal and vertical aperture correction function
• Gamma correction curve variable function
• Serial communication function (I2C bus)
• Supports external sync functions (when
   using the CXD2463R) - Line lock/Vreset HPLL
• Supports backlight compensation functions
   (when using the CXD2463R)
• Character input pin
• Blemish detection and compensation function


Application

Various CCD black-and-white cameras


Pinout

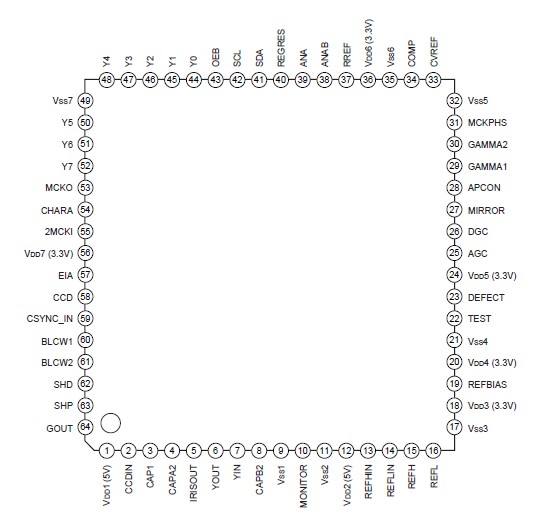

Connection Diagram


Specifications

Supply voltage VDD (3.3V) VSS 0.3 to +4.6 V
  VDD (5.0V) VSS 0.3 to +6.0 V
Input voltage VI (3.3V) VSS 0.3 to VDD3 + 0.3 V
  VI (5.0V) VSS 0.3 to VDD5 + 0.3 V
Output voltage VO (3.3V) VSS 0.3 to VDD3 + 0.3 V
  VO (5.0V) VSS 0.3 to VDD5 + 0.3 V
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +125 °C



Description

The CXD3152AR is a digital signal processor LSI for CCD black-and-white cameras. In addition to the CDS and AGC circuits of conventional analog signal processor LSI, this chip also features the ease of use and functions of digital signal processing.
