Product Details

Description

Features:

• Generates the color LCD module ACX704AKM drive pulse.
• Standby mode function
• Thin package (100-pin TQFP)

Application

PDA, compact LCD monitor, etc.

Pinout

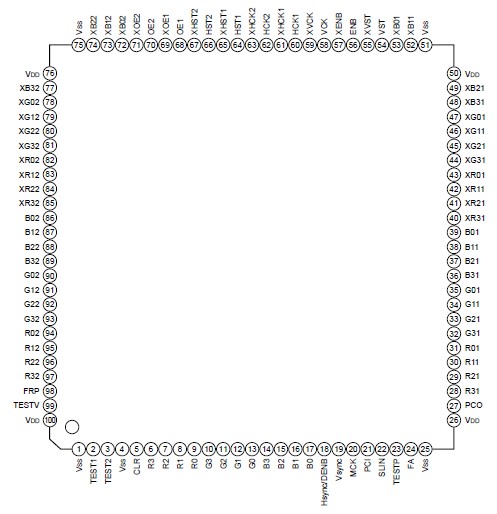

Connection Diagram

Specifications

Supply voltage	V_DD	V_SS0.5 to +4.0	V
Input voltage	V_I	V_SS 0.5 to V_DD + 0.5	V
Output voltage	V_O	V_SS 0.5 to V_DD + 0.5	V
Operating temperature	T_opr	25 to +75	°C
Storage temperature	T_stg	55 to +125	°C

Description

The CXD3508BTQ is a LCD interface IC for the color LCD module ACX704AKM driver.
