Part Number: CXD8302Q
Description: The CXD8302Q has the functions needs to configure a PLL circuit with a timing generator and external s...
- Table of contents:
CXD8302Q
-
Suppliers
DataSheet
General Description
CXD8302Q General Description
The CXD8302Q has the functions needs to configure a PLL circuit with a timing generator and external sync signals for a CCD of 480K pixels (EIA, effective pixels) and 570K pixels (CCIR, effective pixels).
CXD8302Q Maximum Ratings
| Supply voltage | VDD | VSS 0.3 to +7 | V |
| Input voltage | VI | VSS 0.3 to VDD + 0.3 | V |
| Storage temperature | Tstg | 40 to +125 | °C |
CXD8302Q Features
• EIA and CCIR compatible
• Compatible with component digital and composite digital recording format
• Both SYNC and VD/HD signals can be used for external sync signals
• Compatible with component digital and composite digital recording format
• Both SYNC and VD/HD signals can be used for external sync signals
CXD8302Q Typical Application
CCD cameras

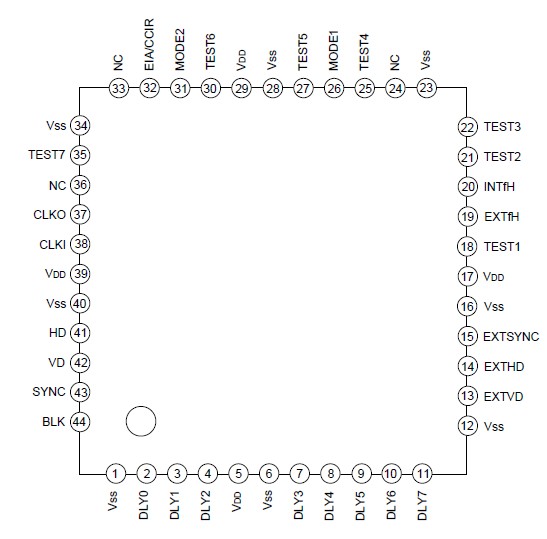

CXD8302Q Connection Diagram
CXD8302Q
PDF/DataSheet Download
- Datasheet: CXD8302Q
- File Size: 187788 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
