Features:

• Ultraminiature package (10 pin TSSOP)
• Low voltage operation: 2.9 V (Min.)
• Low current consumption: 45 mA (Typ.)
• High gain : 27.5 dB (Typ.) (for 1.5 GHz) 29.5 dB (Typ.) (for 800 MHz)
• Low distortion (Adjacent channel leak power ratio)
        : 50 dBc (Typ.) (30 kHz offset)
  69 dBc (Typ.) (50 kHz offset)
• Positive power supply operation (Adjustment-free for VGG)
• Supports both 800 MHz and 1.5 GHz by the external matching circuit


Application

Power amplification between the quadrature modulator IC for 800 MHz/1.5 GHz PDC transmitter (approx. 15 dBm output) and the power module or power amplifier MMIC (approx. +10 dBm input)




Pinout

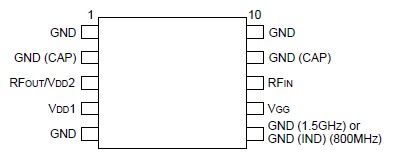

Connection Diagram


Specifications

Supply voltage

VDD

7

V

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

55 to +150

°C

Allowable power dissipation

PD

550

mW

Voltage between gate and source

VGSO

15

V

Drain current



150

mA




Description

The CXG1027TM is a two-stage driver amplifier for 800 MHz and 1.5 GHz PDC. This is used to amplify the transmission-side power of the RF signal.
