Description: The CXG1051AFN is an MMIC consisting of the power amplifier, antenna switch and low noise down conversion mixer.

Urgent Purchase

CXG1051AFN General Description


The CXG1051AFN is an MMIC consisting of the power amplifier, antenna switch and low noise down conversion mixer.

This IC is designed using the Sony's GaAs J-FET process featuring a single positive power supply operation.

CXG1051AFN Maximum Ratings

Supply voltage

VDD

6

V

Voltage between gate and source

VGSO

1.5

V

Drain current

IDD

550

mA

Allowable power dissipation

PD

3

W

CXG1051AFN Features

• Operates at a single positive power supply: VDD = 3V
• Small mold package: 26-pin HSOF

CXG1051AFN Typical Application

Japan digital cordless telephones (PHS)

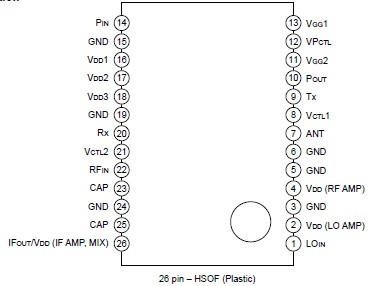

CXG1051AFN Connection Diagram
