Part Number: CXG1068N









Description: The CXG1068N is a high power antenna switch MMIC for use in Dualband GSM handsets. One antenna can be ...


Urgent Purchase

CXG1068N General Description


The CXG1068N is a high power antenna switch MMIC for use in Dualband GSM handsets. One antenna can be routed to either of the 2Tx or 2Rx ports. This IC is designed using the Sony's GaAs J-FET process which enable the CXG1068N to be operated with low voltage.

CXG1068N Maximum Ratings

Supply voltage

VDD

7

V

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

65 to +150

°C

CXG1068N Features

• Low control voltage
• Low insertion loss : 0.5 dB (Typ.) @900 MHz 0.65 dB (Typ.) @1.8 GHz
• Small package :SSOP-20pin (Pin interval of 0.5 mm pitch)
• High power handling :P1dB : 38 dBm (Typ.) 0/5 V control
• Harmonics :31 dBm (Max.) Pin=35 dBm, 0/5 V control

CXG1068N Typical Application

• Dualband GSM 900/GSM 1800 or GSM 900/GSM 1900 handsets.
• Dualmode GSM/DECT handsets.

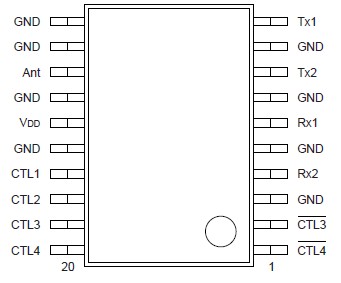

CXG1068N Connection Diagram

CXG1068N Connection Diagram

CXG1068N datasheet

CXG1068N
