Part Number: CXG1130AER









Description: The CXG1130AER is a triple low noise amplifier/ dual mixer. This IC is designed using the Sony's GaAs ...


Urgent Purchase

CXG1130AER General Description


The CXG1130AER is a triple low noise amplifier/ dual mixer. This IC is designed using the Sony's GaAs J-FET process.

CXG1130AER Maximum Ratings

Supply voltage

VDD

4.5

V

Input power

PIN

13

dBm

Channel temperature

IDD

15

mA

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

65 to +150

°C

CXG1130AER Features

• Single 3V power supply operation
• 2-pin control by the on-chip logic circuit
• High gain: Gp = 16.5dB (LNA typ.)
                    Gc = 10dB (MIX typ.)
• Low noise figure: NF = 1.5 to 1.6dB (LNA typ.)
                               NF = 4.5dB (MIX typ.)
• Low LO input power operation
• 24-pin VQFN small package

CXG1130AER Typical Application

800MHz/1.5GHz Japan digital cellular phones (PDC)

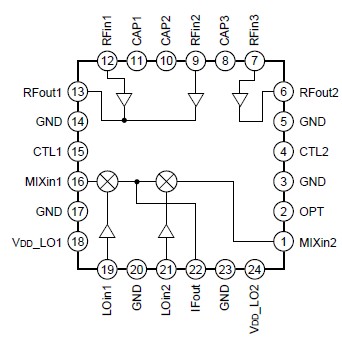

CXG1130AER Connection Diagram

CXG1130AER Connection Diagram

CXG1130AER datasheet

CXG1130AER
PDF/DataSheet Download
