Part Number: CXK5B81020J
Description: CXK5B81020J/TM is a high speed 1M bit Bi-CMOS static RAM organized as 131072 words by 8 bits. Operatin...
- Table of contents:
CXK5B81020J
-
Suppliers
DataSheet
General Description
CXK5B81020J General Description
CXK5B81020J/TM is a high speed 1M bit Bi-CMOS static RAM organized as 131072 words by 8 bits. Operating on a single 3.3V supply this asynchronous IC is suitable for use in high speed and low power applications.
CXK5B81020J Maximum Ratings
| Item | Symbol | Rating | Unit | |
| Supply voltage | VCC | 0.5*1 to +4.6 | V | |
| Input voltage | VIN | 0.5*1 to VCC + 0.5 | V | |
| Input and output voltage | VI/O | 0.5*1 to VCC + 0.5 | V | |
| Allowable power dissipaiton | PD | 1.5*2 | W | |
| Operating temperature | Topr | 0 to +70 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Soldering temperature • time | Tsolder | J | 260 • 10 | °C.sec |
| TM | 235 • 10 | |||
*2 Air flow 1m/s.
CXK5B81020J Features
• Single 3.3V power supply: 3.3V ± 0.3V
• Fast access time 12ns (Max.)
• Low standby current: 10mA (Max.)
• Low power operation 864mW (Max.)
• Package line-up
Dual Vcc/Vss
CXK5B81020J 400mil 32pin SOJ package
CXK5B81020TM 400mil 32pin TSOP package
• Fast access time 12ns (Max.)
• Low standby current: 10mA (Max.)
• Low power operation 864mW (Max.)
• Package line-up
Dual Vcc/Vss
CXK5B81020J 400mil 32pin SOJ package
CXK5B81020TM 400mil 32pin TSOP package

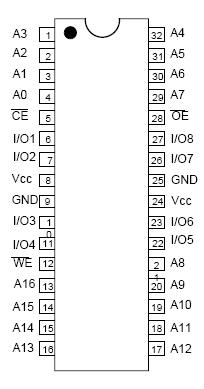

CXK5B81020J Connection Diagram
CXK5B81020J
