Part Number: CXK5V81000ATM
Description: The CXK5V81000ATM is a high speed CMOS static RAM organized as 131072-words by 8-bits.A polysilicon TFT cell techno...
- Table of contents:
CXK5V81000ATM
-
Suppliers
DataSheet
General Description
CXK5V81000ATM General Description
The CXK5V81000ATM is a high speed CMOS static RAM organized as 131072-words by 8-bits.
A polysilicon TFT cell technology realized extremely low stand-by current and higher data retention stability.
Operating on a single 3.3V supply, and special feature are low power consumption, high speed.
The CXK5V81000ATM is a suitable RAM for portable equipment with battery back up.
CXK5V81000ATM Maximum Ratings
| Item | Symbol | Rating | Unit |
| Supply voltage | VCC | 0.5 to +4.6 | V |
| Input voltage | VIN | 0.5* to VCC +0.5 | |
| Input and output voltage | VI/O | 0.5* to VCC +0.5 | |
| Allowable power dissipation | PD | 0.7 | W |
| Operating temperature | Topr | 25 to +85 | °C |
| Storage temperature | Tstg | 55 to +150 | |
| Soldering temperature | Tsolder | 235 • 10 | °C • s |
CXK5V81000ATM Features
• Extended operating temperature range:
25 to +85°C
• Fast access time:
(Access time)
-85LLX 85ns (Max.)
-10LLX 100ns (Max.)
• Low standby current: 28µA (Max.)
• Low data retention current: 24µA (Max.)
• Single 3.3V supply: 3.3V ± 0.3V
• Low voltage data retention: 2.0V (Min.)
• Package
8mm *20mm 32 pin TSOP package
25 to +85°C
• Fast access time:
(Access time)
-85LLX 85ns (Max.)
-10LLX 100ns (Max.)
• Low standby current: 28µA (Max.)
• Low data retention current: 24µA (Max.)
• Single 3.3V supply: 3.3V ± 0.3V
• Low voltage data retention: 2.0V (Min.)
• Package
8mm *20mm 32 pin TSOP package

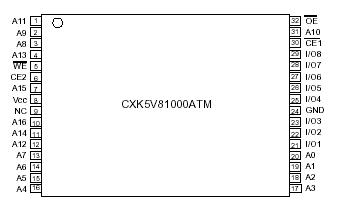

CXK5V81000ATM Connection Diagram
