Product Details

Description



Features:

• Single 5 V power supply
• Low power consumption
• Built-in peripheral circuit
• Built-in tripling PLL circuit
• Center bias mode


Pinout

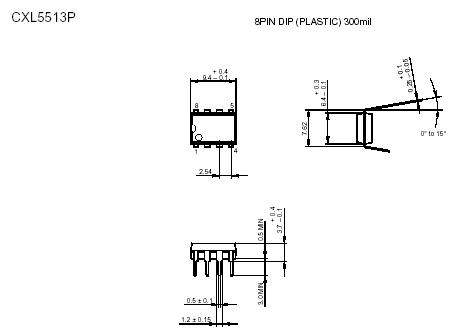

Connection Diagram

Connection Diagram




Specifications

• Supply voltage VDD                                                   +6 V
• Operating temperature Topr                   10 to +60 °C
• Storage temperature Tstg                    55 to +150 °C
• Allowable power dissipation PD
•CXL5513M                                                           350 mW
•CXL5513P                                                           480 mW


Description

The CXL5513P are CMOS-CCD delay line ICs designed for processing video signals. This ICs provide a 1 H delay time for NTSC chroma signals including the external lowpass filter.
