General Description
CXP80740A General Description
The CXP80732A/80740A is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, vector interruption, high precision timing pattern generation circuit, PWM generator, PWM for tuner, VISS/VASS circuit, 32kHz timer/event counter, remote control receiving circuit, VCR vertical sync separation circuit and the measuring circuit which measure signals of capstan FG and drum FG/PG and other servo systems, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port. They are integrated into a single chip.
Also CXP80732A/80740A provides sleep/stop function which enables to lower power consumption and ultralow speed instruction mode in 32kHz operation.
CXP80740A Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +7.0 | V | |
| AVDD | AVss to +7.0*1 | V | ||
| AVSS | 0.3 to +0.3 | V | ||
| Input voltage | VIN | 0.3 to +7.0*2 | V | |
| Output voltage | VOUT | 0.3 to +7.0*2 | V | |
| Mid-voltage drive output voltage | VOUTP | 0.3 to +15.0 | V | PH pin |
| High level output current | IOH | 5 | mA | |
| High level total output current | IOH | 50 | mA | Total of all output pins |
| Low level output current | IOL | 15 | mA | Other than high current output pins: per pin |
| IOLC | 20 | mA | High current port pin*3: per pin | |
| Low level total output current | IOL | 130 | mA | Total for all outputs |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 600 | mW | QFP package type |
| 380 | LQFP package type |
CXP80740A Features
• A wide instruction set (213 instructions) which cover various types of data
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 250ns/16MHz (Supply voltage 4.5 to 5.5V) During operation 122µs/32kHz
• Incorporated ROM capacity 32K bytes (CXP80732A) 40K bytes (CXP80740A)
• Incorporated RAM capacity 800 bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation system (Conversion time 20.0µs/16MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO, 1-channe (1 to 8 bytes auto transfer) 8-bit serial I/O, 1-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- High precision timing pattern generator PPG 19 pins 32-stage programmable RTG 5-pins 2-channel
- PWM/DA gate output 12-bit, 2-channel (Repetitive frequency 62kHz/16MHz)
- Servo input control Capstan FG, Drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14-bit, 1-channel
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control receiving circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 21 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluation chip CXP87700 100-pin ceramic QFP/LQFP
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 250ns/16MHz (Supply voltage 4.5 to 5.5V) During operation 122µs/32kHz
• Incorporated ROM capacity 32K bytes (CXP80732A) 40K bytes (CXP80740A)
• Incorporated RAM capacity 800 bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation system (Conversion time 20.0µs/16MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO, 1-channe (1 to 8 bytes auto transfer) 8-bit serial I/O, 1-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- High precision timing pattern generator PPG 19 pins 32-stage programmable RTG 5-pins 2-channel
- PWM/DA gate output 12-bit, 2-channel (Repetitive frequency 62kHz/16MHz)
- Servo input control Capstan FG, Drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14-bit, 1-channel
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control receiving circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 21 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluation chip CXP87700 100-pin ceramic QFP/LQFP

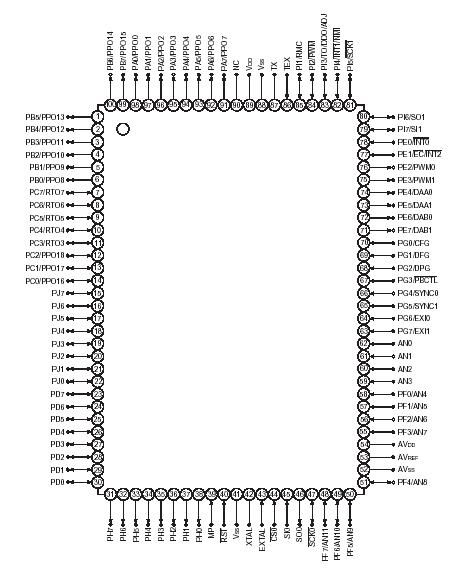

CXP80740A Connection Diagram
CXP80740A
