Part Number: CXP811P24
Description: The CXP811P24 is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface,timer/counter, time base ...
- Table of contents:
CXP811P24
-
Suppliers
DataSheet
General Description
CXP811P24 General Description
The CXP811P24 is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface,timer/counter, time base timer, PWM output, as well as basic configurations like 8-bit CPU, PROM, RAM and I/O port. They are integrated into a single chip.
Also the CXP811P24 provides power-on reset function, sleep/stop function which enables to lower power consumption .
The CXP811P24 is the PROM-incorporated version of the CXP81120/81124 with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
CXP811P24 Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +7.0 | V | |
| VPP | 0.3 to +13.0 | V | Incorporated PROM | |
| AVDD | AVss to +7.0 | V | ||
| AVSS | 0.3 to +0.3 | V | ||
| AVREF | AVSS to +7.0 | V | ||
| Input voltage | VIN | 0.3 to +7.0*1 | V | |
| Output voltage | VOUT | 0.3 to +7.0*1 | V | |
| High level output current | IOH | 5 | mA | |
| High level total output current | IOH | 50 | mA | Total of all output pins |
| Low level output current | IOL | 15 | mA | |
| Low level total output current | IOL | 130 | mA | Total for all outputs |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 600 | mW | QFP-64P-L01 |
| 380 | LQFP-64P-L01 |
CXP811P24 Features
• A wide instruction set (213 instructions) which covers various types of data
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz (4.5 to 5.5V) 333ns at 12MHz (3.0 to 5.5V)
• Incorporated PROM capacity 24K bytes
• Incorporated RAM capacity 832 bytes
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation system (Conversion time: 20µs at 16MHz)
- Serial interface Incorporated buffer RAM (1 to 32 bytes auto transfer), 1 channel Incorporated 8-bit and 8-stage FIFO (1 to 8 bytes auto transfer), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer
- PWM output 12 bits, 2 channels
• Interruption 10 factors, 10 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 64-pin plastic QFP/LQFP
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz (4.5 to 5.5V) 333ns at 12MHz (3.0 to 5.5V)
• Incorporated PROM capacity 24K bytes
• Incorporated RAM capacity 832 bytes
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation system (Conversion time: 20µs at 16MHz)
- Serial interface Incorporated buffer RAM (1 to 32 bytes auto transfer), 1 channel Incorporated 8-bit and 8-stage FIFO (1 to 8 bytes auto transfer), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer
- PWM output 12 bits, 2 channels
• Interruption 10 factors, 10 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 64-pin plastic QFP/LQFP

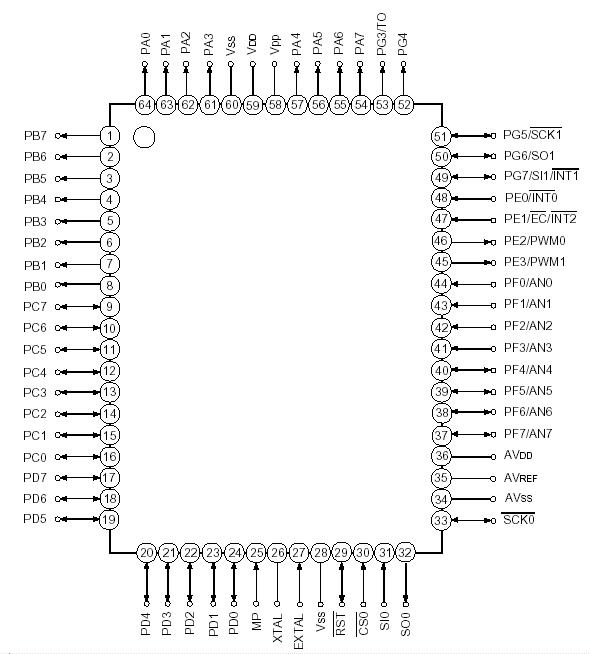

CXP811P24 Connection Diagram
CXP811P24
PDF/DataSheet Download
- Datasheet: CXP811P24
- File Size: 471369 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
