Features:

• A wide instruction set (213 instructions) which cover various types of data
16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 333ns at 12MHz operation (3.0 to 5.5V) 250ns at 16MHz operation (4.5 to 5.5V) 122µs at 32kHz operation
• Applicable EPROM LCC type 27C256, LCC type 27C512 (Maximum 48Kbytes are available)
• Incorporated RAM capacity 1344bytes
• Peripheral functions
A/D converter 8-bit, 12-channel, successive approximation method (Conversion time of 20µs/16MHz)
Serial interface Incorporated 8-bit, 8-stage FIFO (auto transfer for 1 to 8bytes), 1-channel 8-bit clock synchronous 1-channel
Timer 8-bit timer 8-bit timer/counter 19-bit time base timer 32kHz timer/counter
High precision timing pattern generator PPG 19-pin, 32-stage programmable RTG 5-pin, 2-channel
PWM/DA gate output PWM output 12-bit, 2-channel (repetitive frequency 62.5kHz/16MHz) DA gate pulse output 12-bit, 4-channel
FRC capture unit Incorporated 26-bit and 8-stage FIFO
PWM output 14-bit, 1-channel
Remote control receiving circuit 8-bit pulse measuring counter 6-stage FIFO
• Interruption 21 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin ceramic PQFP

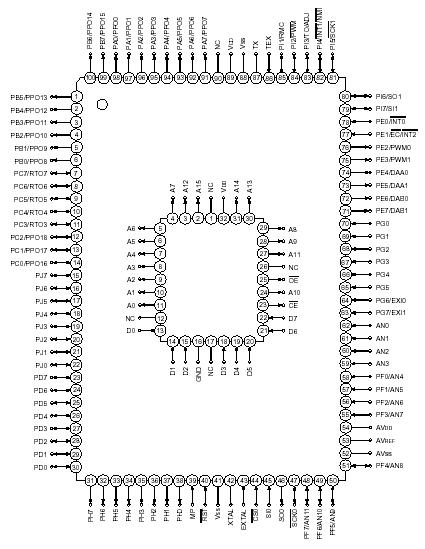

Pinout

Connection Diagram


Description

The CXP81800 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type,which is developed for evaluating the function of the CXP81840A/81848A.
