Part Number: CXP81900M
Description: The CXP81900M is a CMOS 8-bit single chip micro-computer of piggyback/evaluator combined type, which is developed for e...
- Table of contents:
CXP81900M
-
Suppliers
DataSheet
General Description
CXP81900M General Description
The CXP81900M is a CMOS 8-bit single chip micro-computer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP81952M/81960M.
CXP81900M Features
• A wide instruction set (213 instructions) which cover various types of data.
16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5 to 5.5V) 333ns at 12MHz operation (2.7 to 5.5V) 122µs at 32kHz operation
• Applicable EPROM LCC type 27C256, LCC type 27C512 (Maximum 60Kbytes are available.)
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
A/D converter 8-bit, 12-channel, successive approximation method (Conversion time of 20µs/16MHz)
Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
Timer 8-bit timer, 8-bit timer/counter 19-bit time base timer 32kHz timer/counter
High precision timing pattern generator PPG 19-pin, 32-stage programmable RTG 5 pins, 2 channels
PWM/DA gate output PWM output 12 bits, 2 channels (Repetitive frequency 62.5kHz/16MHz) DA gate pulse output 13 bits, 4channels
FRC capture unit Incorporated 26-bit and 8-stage FIFO
PWM output 14 bits, 1 channel
Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
General purpose prescaler 7 bits (PG5 input frequency division, FRC capture possible.)
HSYNC counter 12-bit event counter (SYNC1 input count)
• Interruption 20 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin ceramic PQFP
16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5 to 5.5V) 333ns at 12MHz operation (2.7 to 5.5V) 122µs at 32kHz operation
• Applicable EPROM LCC type 27C256, LCC type 27C512 (Maximum 60Kbytes are available.)
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
A/D converter 8-bit, 12-channel, successive approximation method (Conversion time of 20µs/16MHz)
Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
Timer 8-bit timer, 8-bit timer/counter 19-bit time base timer 32kHz timer/counter
High precision timing pattern generator PPG 19-pin, 32-stage programmable RTG 5 pins, 2 channels
PWM/DA gate output PWM output 12 bits, 2 channels (Repetitive frequency 62.5kHz/16MHz) DA gate pulse output 13 bits, 4channels
FRC capture unit Incorporated 26-bit and 8-stage FIFO
PWM output 14 bits, 1 channel
Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
General purpose prescaler 7 bits (PG5 input frequency division, FRC capture possible.)
HSYNC counter 12-bit event counter (SYNC1 input count)
• Interruption 20 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin ceramic PQFP

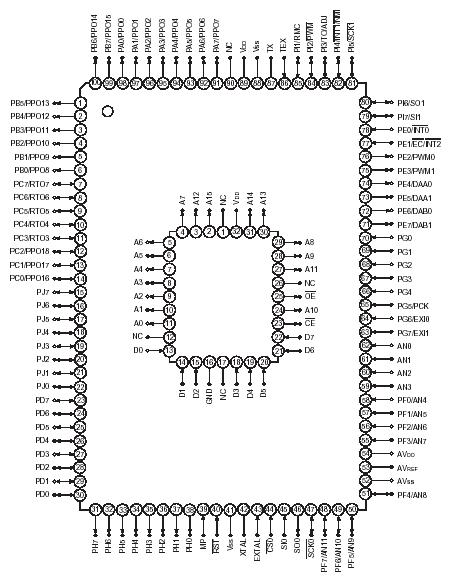

CXP81900M Connection Diagram
CXP81900M
PDF/DataSheet Download
- Datasheet: CXP81900M
- File Size: 267500 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
