Purchase CXP819P60, In-stock CXP819P60 From SeekIC.
Part Number: CXP819P60
Description: The CXP819P60 is a CMOS 8-bit micro-computer which consists of A/D converter, serial interface,timer/counter, time base...
- Table of contents:
CXP819P60
-
Suppliers
DataSheet
General Description
CXP819P60 General Description
The CXP819P60 is a CMOS 8-bit micro-computer which consists of A/D converter, serial interface,timer/counter, time base timer, vector interruption,high precision timing pattern generation circuit,PWM generator, PWM for tuner, 32kHz timer/event counter, remote control receiving circuit, general purpose prescaler, and external signal, as well as basic configurations like 8-bit CPU, PROM, RAM and I/O port. They are integrated into a single chip.
Also the CXP819P60 provides sleep/stop function which enables to lower power consumption and ultra-low speed instruction mode in 32kHz operation.
This IC is the PROM-incorporated version of the CXP81960 with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
CXP819P60 Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +7.0 | V | |
| Vpp | 0.3 to +13 | V | Incorporated PROM | |
| AVDD | AVss to +7.0*1 | V | ||
| AVSS | 0.3 to +0.3 | V | ||
| Input voltage | VIN | 0.3 to +7.0*2 | V | |
| Output voltage | VOUT | 0.3 to +7.0*2 | V | |
| Mid-voltage drive output voltage | VOUTP | 0.3 to +15.0 | V | PH pin |
| High level output current | IOH | 5 | mA | |
| High level total output current | IOH | 50 | mA | Total of all output pins |
| Low level output current | IOL | 15 | mA | Ports excluding large current output (value per pin) |
| IOLC | 20 | mA | Large current port pin*3: per pin | |
| Low level total output current | IOL | 130 | mA | Total for all outputs |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 600 | mW | QFP package type |
| 380 | mW | LQFP package type |
CXP819P60 Features
• A wide instruction set (213 instructions) which cover various types of data
- 16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation 122µs at 32kHz operation
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation system (Conversion time 20.0µs/16MHz)
- Serial Interface Incorporated buffer RAM (1 to 32 bytes auto transfer) 1-channel Incorporated 8-bit and 8-stage FIFO for data (1 to 8 bytes auto transfer) 1-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer, 32kHz timer/counter
- High precision timing pattern generator PPG 19-pin 32-stage programmable RTG 5-pin 2-channel
- PWM/DA gate output PWM 12-bit, 2-channel (Repetitive frequency 62kHz/16MHz) DA gate pulse output 13-bit, 4-channel
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14-bit, 1-channel
- Remote control receiving circuit 8-bit pulse measurement counter with on-chip, 6-stage FIFO
- General purpose prescaler 7-bit (PG5 input frequency divided, FRC capture possible)
• Interruption 20 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP
- 16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation 122µs at 32kHz operation
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation system (Conversion time 20.0µs/16MHz)
- Serial Interface Incorporated buffer RAM (1 to 32 bytes auto transfer) 1-channel Incorporated 8-bit and 8-stage FIFO for data (1 to 8 bytes auto transfer) 1-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer, 32kHz timer/counter
- High precision timing pattern generator PPG 19-pin 32-stage programmable RTG 5-pin 2-channel
- PWM/DA gate output PWM 12-bit, 2-channel (Repetitive frequency 62kHz/16MHz) DA gate pulse output 13-bit, 4-channel
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14-bit, 1-channel
- Remote control receiving circuit 8-bit pulse measurement counter with on-chip, 6-stage FIFO
- General purpose prescaler 7-bit (PG5 input frequency divided, FRC capture possible)
• Interruption 20 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP

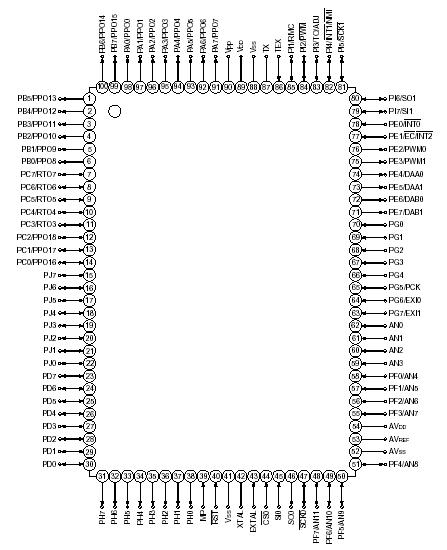

CXP819P60 Connection Diagram
CXP819P60
PDF/DataSheet Download
- Datasheet: CXP819P60
- File Size: 567741 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
