Purchase CXP820P60, In-stock CXP820P60 From SeekIC.
Part Number: CXP820P60
Description: The CXP820P60 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface...
- Table of contents:
CXP820P60
-
Suppliers
DataSheet
General Description
CXP820P60 General Description
The CXP820P60 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, capture timer/counter, fluorescent display panel controller/driver, remote control reception circuit, and PWM output circuit besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.
The CXP820P60 also provides sleep/stop function that enables lower power consumption. CXP820P60 is the PROM-incorporated version of the CXP82052/82060 with bult-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
CXP820P60 Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +5.0 | V | |
| Vpp | 0.3 to +13.0 | V | Incorporated PROM | |
| FDP display supply voltage | VFDP | 40*2 to +7.0*1 | V | |
| Input voltage | VIN |
0.3 to +5.0*1 |
V | |
| Output voltage | VOUT | 0.3 to +5.0*1 | V | |
| Display output voltage | VOD | 40*2 to +7.0*1 | mA | All pins excluding display outputs*3 (value per pin) |
| High level output current | IOH | 5 | mA | Display outputs A20 to A55 (value per pin) |
| IODH1 | 15 | mA | Display outputs G0/A0 to G15/A15, and A16 to A19 (value per pin) | |
| IODH2 | 50 | mA | Total for all pins excluding display outputs | |
| High level total output current | IOH | 30 | mA | Total for all display outputs |
| IODH | 120 | mA | Pins excluding large current output (value per pin) | |
| Low level output current | IOL | 15 | mA | Large current output pins*4 (value per pin) |
| Low level total output current | IOLC | 20 | mA | Total for all output pins |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 600 | mW |
CXP820P60 Features
• Wide-range instruction system (213 instructions) to cover various types of data
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation 122µs at 32kHz operation
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 3984 bytes (including fluorescent display area)
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 3.25µs/16MHz)
- Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel 8-bit clock synchronized type, (MSB/LSB first selectable), 1 channel Start-stop synchronization (UART), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time-base timer 16-bit capture timer/counter, 32kHz timer/counter
- Fluorescent display panel Supports the universal grid fluorescent display panel controller/driver High voltage drive output port of 56 pins (40V) Maximum of 640 segments display possible Display timing number of 1 to 20 Dimmer function Incorporated pull-down resistor (mask option) Hardware key scan function (Maximum of 16 *8 key matrix supportable)
- Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
- PWM output 14 bits, 1 channel
• Interruption 17 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP
• Piggy/Evaluation chip CXP82000 100-pin ceramic QFP
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation 122µs at 32kHz operation
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 3984 bytes (including fluorescent display area)
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 3.25µs/16MHz)
- Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel 8-bit clock synchronized type, (MSB/LSB first selectable), 1 channel Start-stop synchronization (UART), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time-base timer 16-bit capture timer/counter, 32kHz timer/counter
- Fluorescent display panel Supports the universal grid fluorescent display panel controller/driver High voltage drive output port of 56 pins (40V) Maximum of 640 segments display possible Display timing number of 1 to 20 Dimmer function Incorporated pull-down resistor (mask option) Hardware key scan function (Maximum of 16 *8 key matrix supportable)
- Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
- PWM output 14 bits, 1 channel
• Interruption 17 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP
• Piggy/Evaluation chip CXP82000 100-pin ceramic QFP

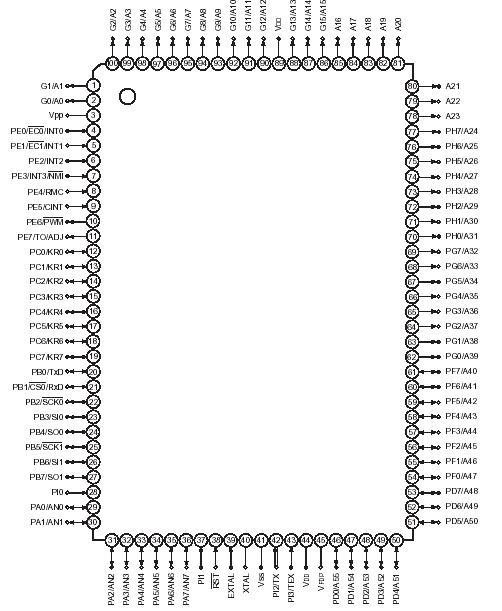

CXP820P60 Connection Diagram
CXP820P60
PDF/DataSheet Download
- Datasheet: CXP820P60
- File Size: 289291 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
