CXP82324

Features:

• Instruction set which supports a wide array of data types
- 213 types of instructions which include 16-bit calculations, multiplication and division arithmetic, and boolean bit operations.
• Minimum instruction cycle 400ns for 10MHz operation
• On-chip ROM 16K bytes (CXP82316) 20K bytes (CXP82320) 24K bytes (CXP82324)
• On-chip RAM 704 bytes (Including fluorescent display data area)
• Peripheral functions:
- A/D converter 8-bit, 8-channel, successive approximation system (conversion rate 32µs/10MHz)
- Serial interface On-chip 8-bit, 8-stage FIFO (1 to 8 bytes auto transfer) 1 channel 8-bit clock synchronized 1 channel
- Timers 8-bit timer 8-bit timer/counter 19-bit time-base timer 16-bit capture timer/counter
- Fluorescent display controller/driver Maximum of 336 segment display available 1 to 16 digits dynamic display Dimmer function High voltage tolerant output (40V) On-chip pull-down resistor (Mask option)
- Remote control receiver circuit On-chip noise elimination circuit On-chip 6 stage FIFO 8-bit pulse measurement counter
• Interrupts 14 factors, 15 vectors multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin plastic QFP
• Piggyback/evaluator CXP82300 80-pin ceramic QFP

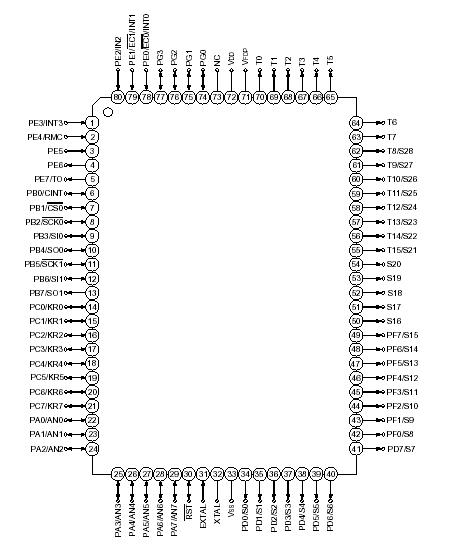

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
Display output voltage	VOD	VDD 40 to VDD + 0.3	V	As P channel transistor is open drain, VDD voltage is determined as standerd.
High level output current	IOH	5	mA	Other than display output pins*2 : per pin
	IODH1	15	mA	Display outputs S0 to S20: per pin
	IODH2	35	mA	Display outputs T0 to T7, T8/S28 to T15/S21: per pin
High level total output current	IOH	40	mA	Total for all display outputs
	IODH	100	mA	Port 1
Low level output current	IOL	15	mA	Large current Port 1 *3
	IOLC	20	mA	Entire pin total
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW

Description

The CXP82324 microcomputer is composed of a CPU, ROM and RAM, and I/O ports. These chips feature many other high-performance circuits in a single-chip CMOS design, including an A/D converter, serial interface, timer/counter, timebase timer, capture timer/counter, fluorescent display controller/driver, remote control receiver.
This CXP82324 also includes a power-on reset function and sleep/stop functions which can be used to achieve low power consumption.
